SRT CH635S HV (0.14s/35.0kg/8.4V) Coreless Servo

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.

Features:
  • Ideal for 1/5 and 1/8 off road scale applications,  as well as large scale airplanes and jets
  • Incredible efficiency and low power consumption
  • Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications:
Type: Digital
Bearing: Dual
Motor Type: Coreless

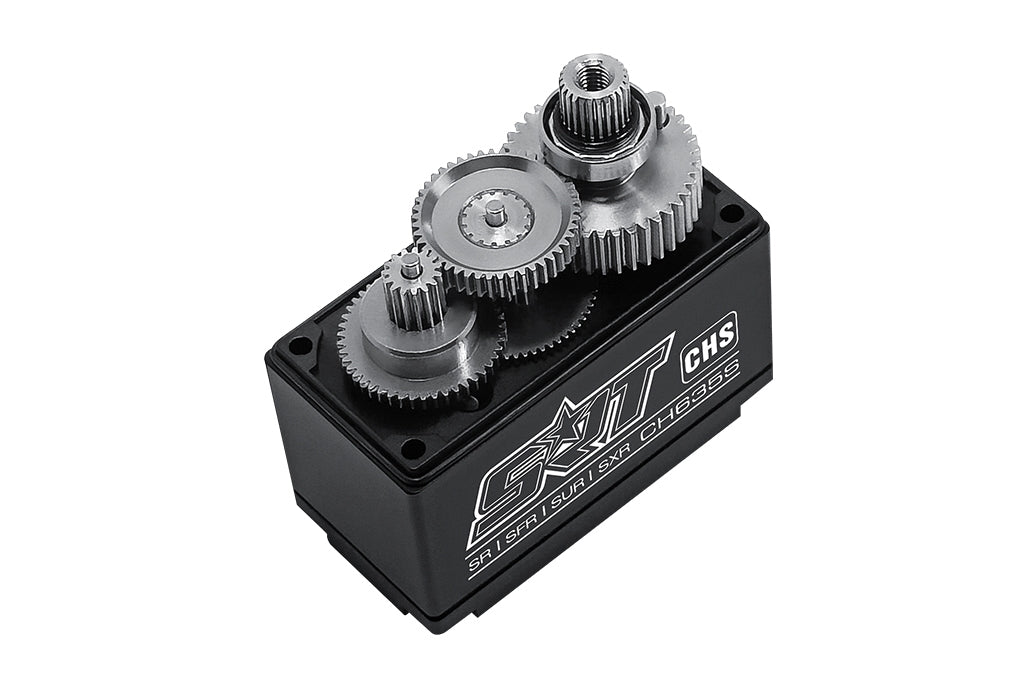

Gear Type: Metal
Gear Material: Titanium & Steel
Control system: Pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0V): 0.16 sec/60 degrees at no load
Operating speed (7.4V): 0.15 sec/60 degrees at no load
Operating speed (8.4V): 0.14 sec/60 degrees at no load
Stall torque (6.0V): 30.0kg.cm (416.6 oz/in)
Stall torque (7.4V): 32.0kg.cm (444.4 oz/in)
Stall torque (8.4V): 35.0kg.cm (486.1 oz/in)
Potentiometer drive: Direct drive

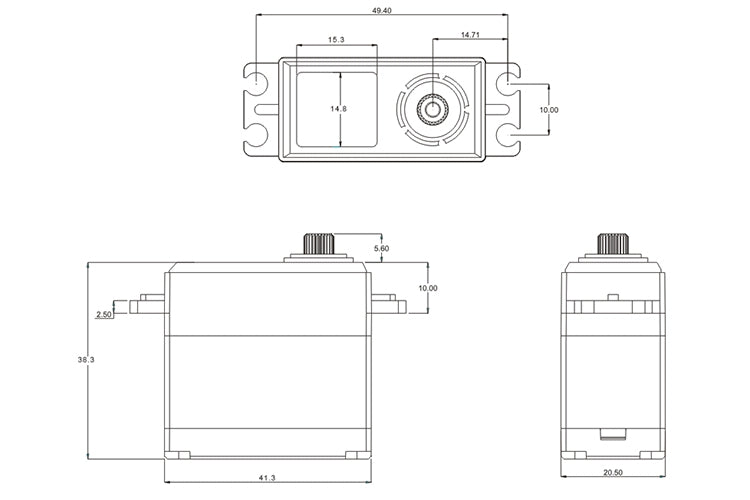

Dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
Weight: 69.0g (2.43 oz)
Connector wire length: jr 300 mm
