Home / Outlet/ Brands/ AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473

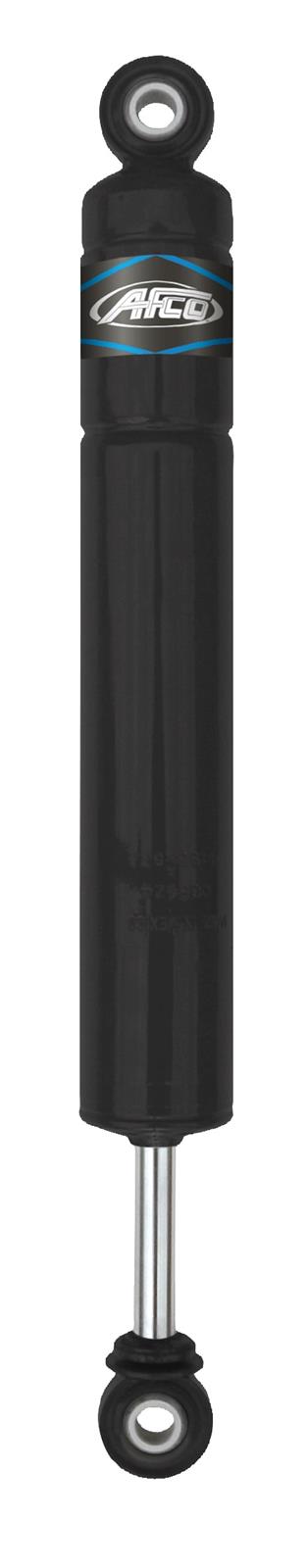

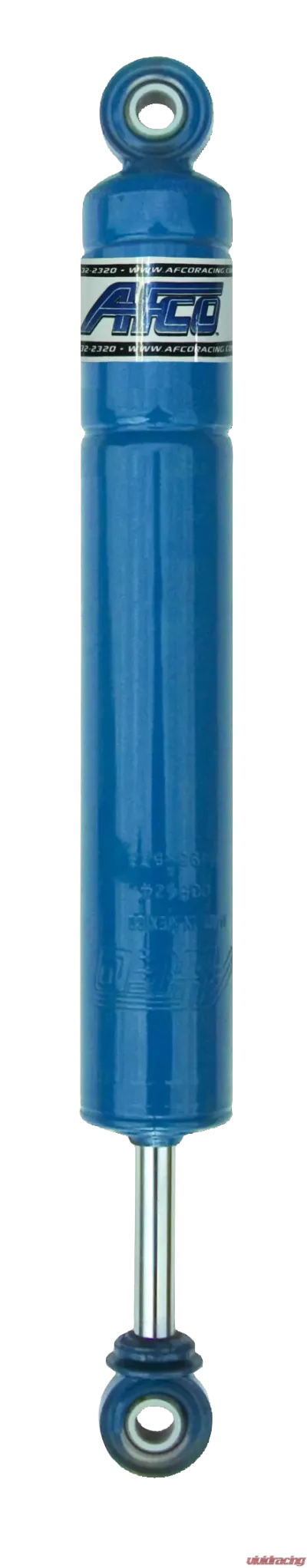

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473 View larger
    AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473
    AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473

Buy Brand AFCO Racing Products AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473, Model AFC1473 online. Suspension

$121.99

SAVE 50%-80% OFF

$36.60

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473

AFCO fixed bearing 14 Series sealed body coil-over shocks. Our most economical coil-over shock grooved for coil kit, steel body, twin tube design. 7" stroke, 3 valve on compression and rebound. Coil kit 20125A for 2 5/8" coils or 20125A-7K for 5" OD springs.

  • Sealed bodyTwin-Tube designCan be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 12.75"
  • Extended Length: 19.50"
  • Stroke: 7"
  • Comp. Length: 12.75"
  • Extended Length: 19.50"
  • Comp/Rebound: 3/5

Specifications

Shock Type:

 Twin Tube
Shock Adjustability: Non-Adjustable

Shock Body Material:

 Steel
Shock Body Type: Smooth

Shock Body Size:

 Small Body
Shock Stroke Range: 7.00" to 7.99"

Compression Valving:

 3
Rebound Valving: 5

Shock Stroke:

 7
Upper Shock Mount: 1/2" Spherical Rod End

Lower Shock Mount:

 1/2" Spherical Rod End
Extended Length Range: 19.00" to 19.99"

Extended Length:

 19.5"
Compressed Length Range: 12.00" to 12.99"

Compressed Length:

 12.75"
Schrader Valve: No

Finish:

 Painted
Coil-Over Compatible: Yes

Body Diameter:

 2.00"
Valve Positions: 3 compression - 5 rebound

Rebuildable:

 No
MFG. Part #: 14735

Sold in Quantity:

 Each
Shock Eyelet Width: 0.625"

Bolt Hole Circle:

 .500"
Hardware Included: No



Description

Product code: AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473
