100 Amp Indoor Plug-On Neutral Load Center

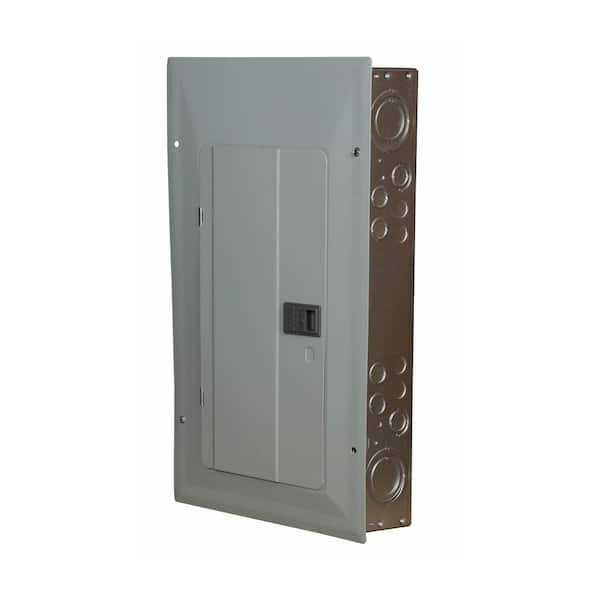

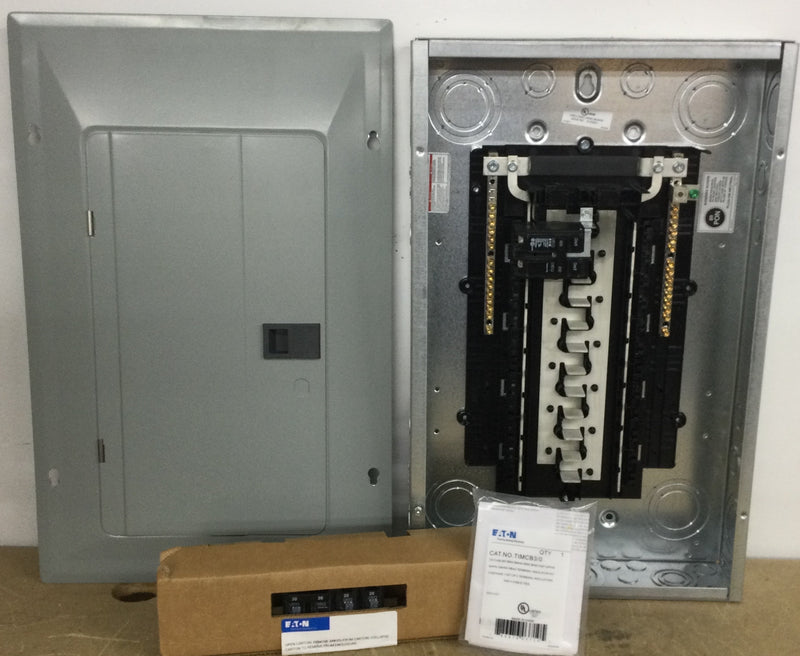

The Eaton BR 100 Amp 40-Circuit Main Breaker Indoor Load Center offers streamlined operations for professionals. With its innovative plug-on neutral design, this panel reduces installation time significantly, making professional-grade electrical work more efficient. Its durable and easy-to-install features promise a neat and robust setup.

Key Features:

• Optimized Design: Plug-on neutral design eliminates the need for pigtail connections, saving time and reducing clutter.
• Professional Installation: In-board neutral bar increases gutter space for a clean conductor setup.
• User-Friendly Features: Self-leveling tabs simplify drywall offsets, and the keyhole hanging feature makes cover installation easier.
• Durable Cover: Includes a rigid cover spine for enhanced strength during cover removal and installation.
• High Performance: Supports up to 100 Amps with 40 circuits and includes a NEMA 1 enclosure for indoor use.

Specifications Table:

Frequently Asked Questions (FAQ):

Q: How does the plug-on neutral design benefit installation?
A: The plug-on neutral design eliminates the need for pigtail connections, making the installation quicker and reducing clutter inside the panel.

Q: Can this load center be used for both top and bottom fed applications?
A: Yes, it features a keyhole hanging design that supports both top and bottom fed applications, enhancing its versatility.

Q: What type of breakers are compatible with this panel?
A: The panel is designed for use with Eaton's type BR 1 in. breakers, accommodating a range of protection needs.

Q: Is the breaker box watertight?
A: No, this load center is rated for indoor use only as a NEMA 1 enclosure and is not designed to be watertight.

Q: What size of wire can be used with this system?
A: The load center accommodates wire sizes ranging from #4 to 1/0 AWG for copper or aluminum conductors.

Sleek Efficiency Meets Robust Functionality

Envision a space where efficiency meets elegance with Eaton's streamlined load center. Its sleek design not only tames the chaos of electrical wiring but transforms any utility space into a haven of order and professionalism. Featuring self-leveling tabs and a keyhole hanging system, this panel blends seamlessly into drywall surroundings, ensuring a flawless, flush mount appearance. For the discerning designer, pairing this load center with chic cabinetry updates the mundane to magnificent — making it a quintessential aspect of sophisticated functionality.

Discover the efficiency of the Eaton BR Load Center and simplify your next electrical project with seamless installation and professional-grade performance.
