Buy JAZ Pro Street Fuel Cell w/Sender 16-Gallon 252-116-01, Model JAZ252-116-01 online. Air And Fuel,Air & Fuel,Fuel Cells, Tanks & Components
$402.99
SAVE 50%-80% OFF
$120.90
$0 today, followed by 3 monthly payments of $3, interest free. Read More

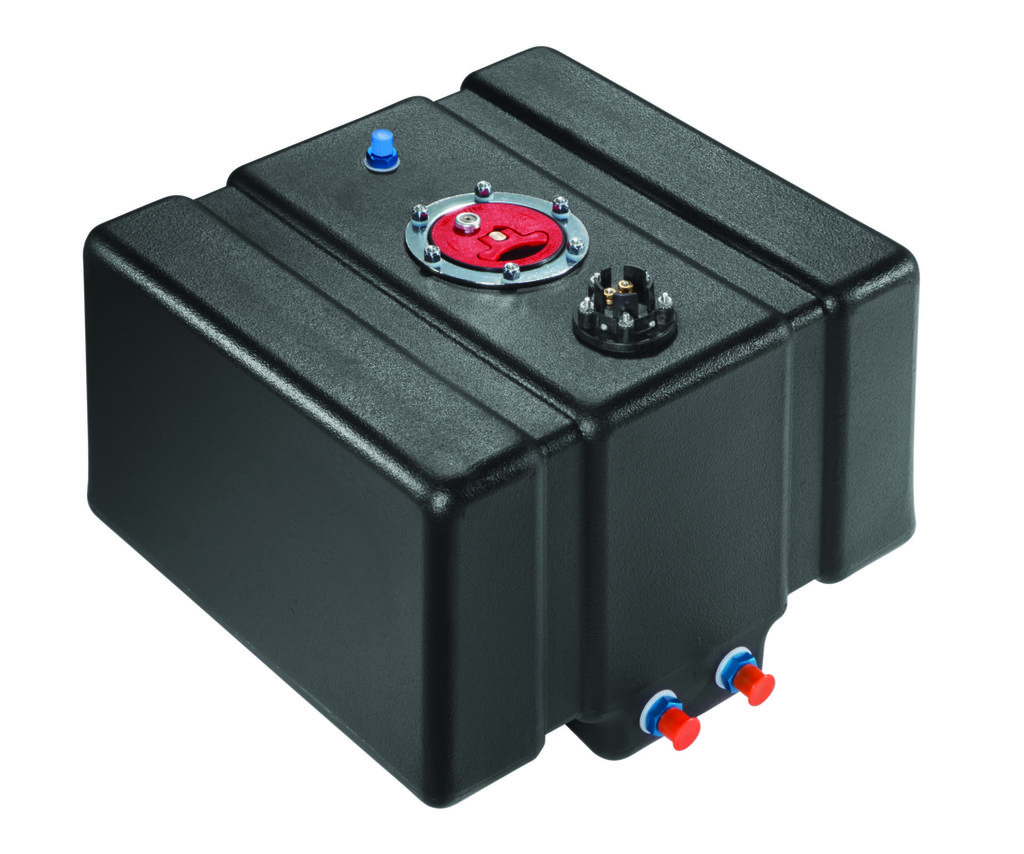

Sixteen-gallon horizontal Pro Street fuel cells may be mounted between wheel tubs or frame rails. A sender is installed and may be connected to a fuel level gauge. Cells use a cross-linked polyethylene outer shell to enclose a built-in sump. Available with or without foam installed. Cells have a 360° recessed area for easy strap mounting.

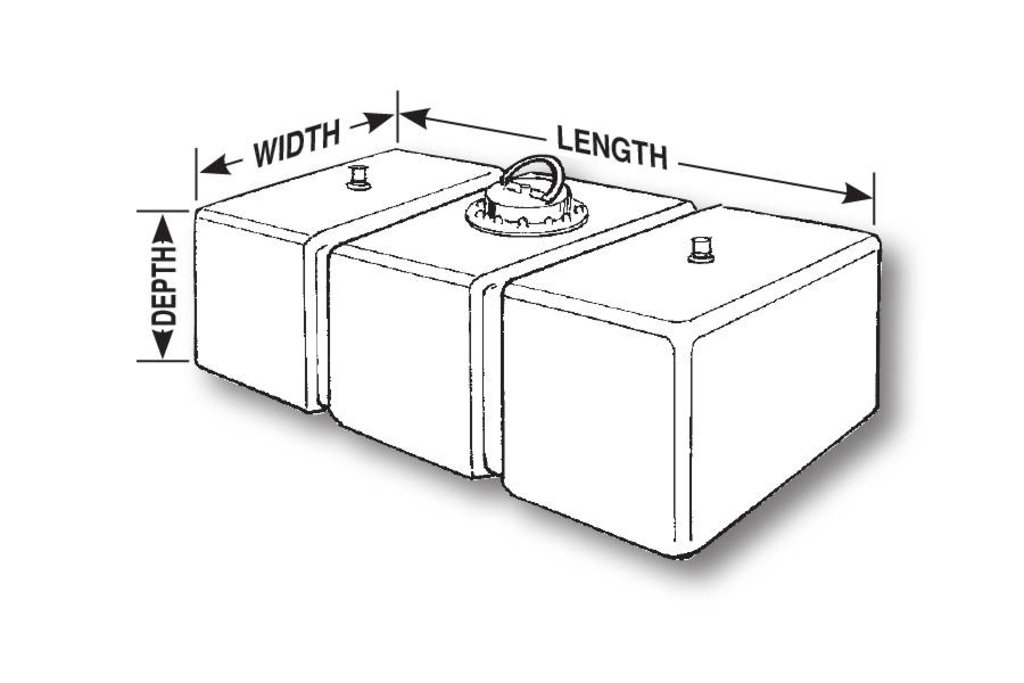

Fuel Cell - Pro Street - 16 gal - 18.5 in Wide x 18.5 in Deep x 12 in Tall - Two 8 AN Outlets - 6 AN Vent - Foam / Sending Unit - Plastic - Black - Sold as Each - Brand: JAZ - Part Number: 252-116-01
Brand | JAZ |
Part Number | 252-116-01 |
Product Line | Pro Street |
Style | Cell |
Shape | Square |
Horizontal / Vertical | Horizontal |
Sump | Yes |
Sump Depth | 2 in |
Foam | Yes |
Capacity | 16 gal |
Width | 18.5 in |
Depth | 18.5 in |
Height | 12 in |
Outlet Location | Bottom |
Outlet Quantity | 2 |
Outlet Size | 8 AN |
Outlet Style | Male |
Vent Size | 6 AN |
Vent Style | Male |
Cap Style | Aircraft |
Cap Attachment Method | Twist-On |
Cap Raised / Flush | Flush Mount |
Fill Plate Included | Yes |
Fill Plate Shape | Round |
Fill Plate Mounting Bolt Quantity | 6 |
Sending Unit Included | Yes |
Sending Unit OHM Low | 0 OHM |
Sending Unit OHM High | 90 OHM |
Material | Plastic |
Color | Black |
Finish | Natural |
Quantity | Each |
