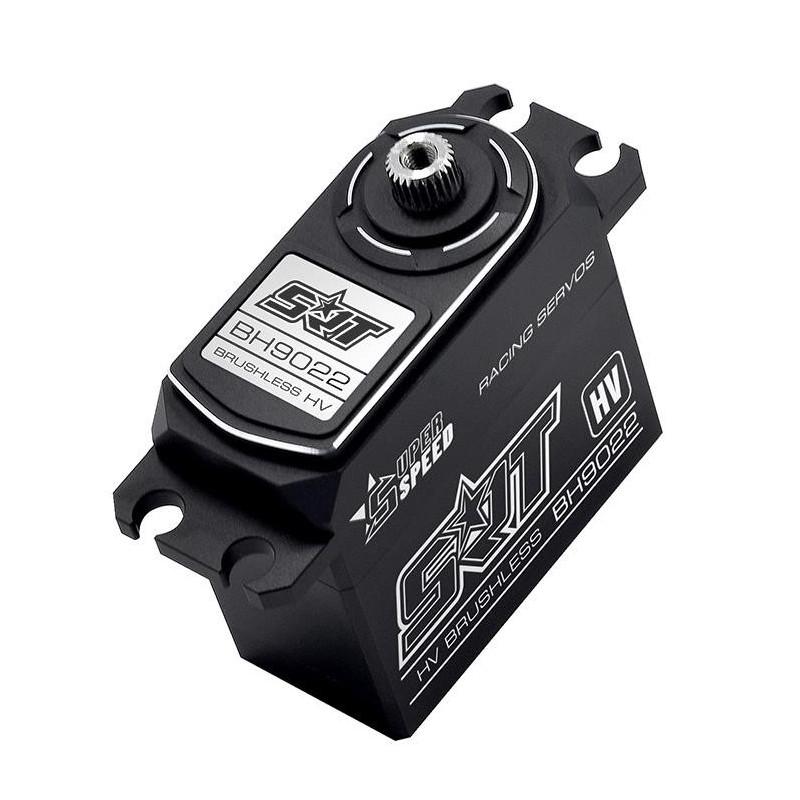

SRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVO View larger
     SRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVO
    SRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVOSRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVOSRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVOSRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVOSRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVO

SRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVO

Buy SRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVO, Model BH9022 online. Servo & receivers,SRT Servo,SERVO & RECEIVERS,Σερβομηχανισμοί - Servo

$120.60

SAVE 50%-80% OFF

$84.42

- +

Add to wishlist


Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More


SRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVO

KEY FEATURES

-          Ideal for 1/10 on road and 1/8 off road scale applications

-          Superior Holding Speed

-          incredible efficiency and low power consumption

-          Standard dimension make it perfect for vehicles that can benefit from a high quality servo

-          CNC Machined aluminum case for exceptional cooling

-          NMB dual main bearings

-          25T output shaft

-          HD 4096 Resolution

-          2 μsec Dead Band



Application :
1/10 on road and 1/8 off road & Helicopter


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.085 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.060 sec/60 degrees at no load
stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 250 mm


SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

Description

Product code: SRT BH9022 1/8-1/10 HV METAL CASE 22KG 0.06S. BRUSHLESS SERVO
