Home / Outlet/ Brands/ Wilwood GM Metric Iron Caliper 120-16101

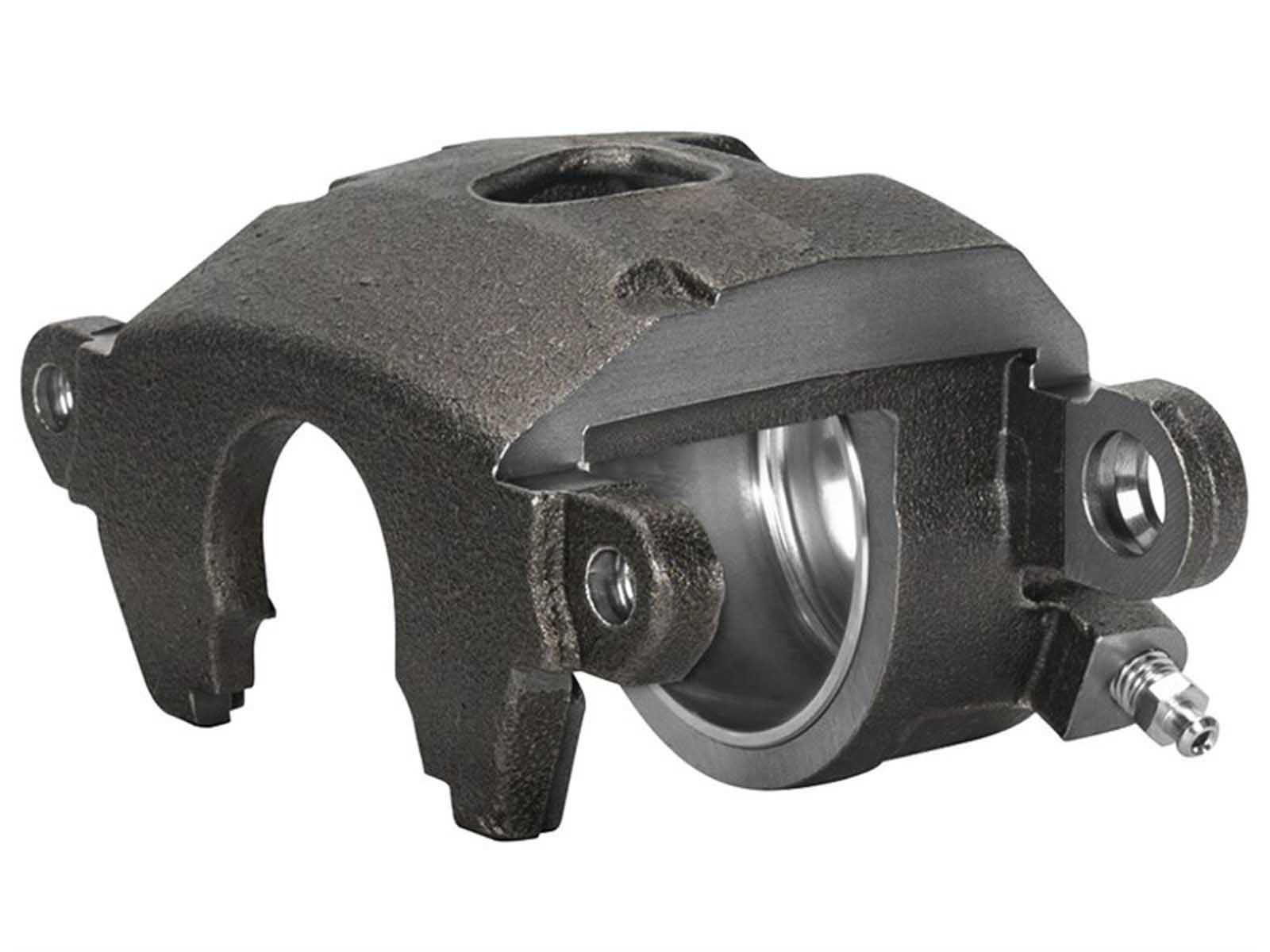

Wilwood GM Metric Iron Caliper 120-16101 View larger
    Wilwood GM Metric Iron Caliper 120-16101

Wilwood GM Metric Iron Caliper 120-16101

Buy Wilwood GM Metric Iron Caliper 120-16101, Model WIL120-16101 online. Brakes and Drivetrain,Brakes

$97.04

SAVE 50%-80% OFF

$38.82

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

Wilwood GM Metric Iron Caliper 120-16101

GM-Metric-Iron Single Piston Floater

These are all new and not rebuilt, cast iron calipers, purpose built for racing. Wilwood’s GM Metric Calipers are bolt-on replacements for 1978 and later GM Metric calipers widely used in "spec" racing categories. Wilwood’s new 2.50” piston GM Metric calipers are now officially approved for IMCA as OEM replacement caliper that meet all rules in Modified, Stock Cars, Hobby Stocks, Northern and Sothern Sport Mods. The GM Metric caliper is also available in 2.75” and 2.00” piston sizes for use in other non-restricted series or applications. Calipers require use of hardened Wilwood slide pins (sold separately), request part no. 230-0619 (slide pin kit) that contains 4 slide pins, enough for two calipers.

Caliper GM Metric Cast Iron 2.50in Piston - MPN: 120-16101

Specifications

Pistons
Piston Count 1
Piston Area (in²) 4.90
Piston Type Stainless
Dust Boot No
Rotor Dimensions
Rotor Width (in) 1.04
Rotor Diameter(in) 11.75
Pad Dimensions
Pad Area (in²) 8.7
Pad Volume (in³) 2.9
Duty Rating & Material
Material Cast Iron
Weight(Lbs) 4.3
Colors & Finish
Color Bare
Finish Bare


Mounting
Mount Center(in) 5.46
Mount Position
Mount Side Universal
Mount Type Floating



Summary

Brand Wilwood
Part Number 120-16101
Product Line
GM Metric
FSMI Pad Shape
D154
Hawk Pad Shape
HB119
Wilwood Pad Shape
D154
Performance Friction Pad Shape
154
Piston Quantity
1
Piston A Diameter
2.500 in
Mounting Style
Floating
Mounting Distance
5.460 in
Intended Rotor Diameter Minimum
11 in
Intended Rotor Diameter Maximum
11.75 in
Intended Rotor Thickness Minimum
0.810 in
Intended Rotor Thickness Maximum
1.040 in
Logo Design
Wilwood
Logo Color
White
Front / Rear
Front | Rear
Driver / Passenger Side
Driver | Passenger
Inlet Thread
10 mm x 1.50
Bleeder Included
Yes
Bleeder Quantity
1
Material
Cast Iron
Color
Natural
Finish
Natural
Quantity
Each

Description

Product code: Wilwood GM Metric Iron Caliper 120-16101
