Allstar Deluxe Roll Cage Kit - Chevy Caprice/Impala View larger
    Allstar Deluxe Roll Cage Kit - Chevy Caprice/Impala

Allstar Deluxe Roll Cage Kit - Chevy Caprice/Impala

Buy Brand Allstar Performance Allstar Deluxe Roll Cage Kit - Chevy Caprice/Impala, Model ALL22105 online. Home page,Chassis Components,Chassis

$469.99

SAVE 50%-80% OFF

$141.00

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

Allstar Deluxe Roll Cage Kit - Chevy Caprice/Impala

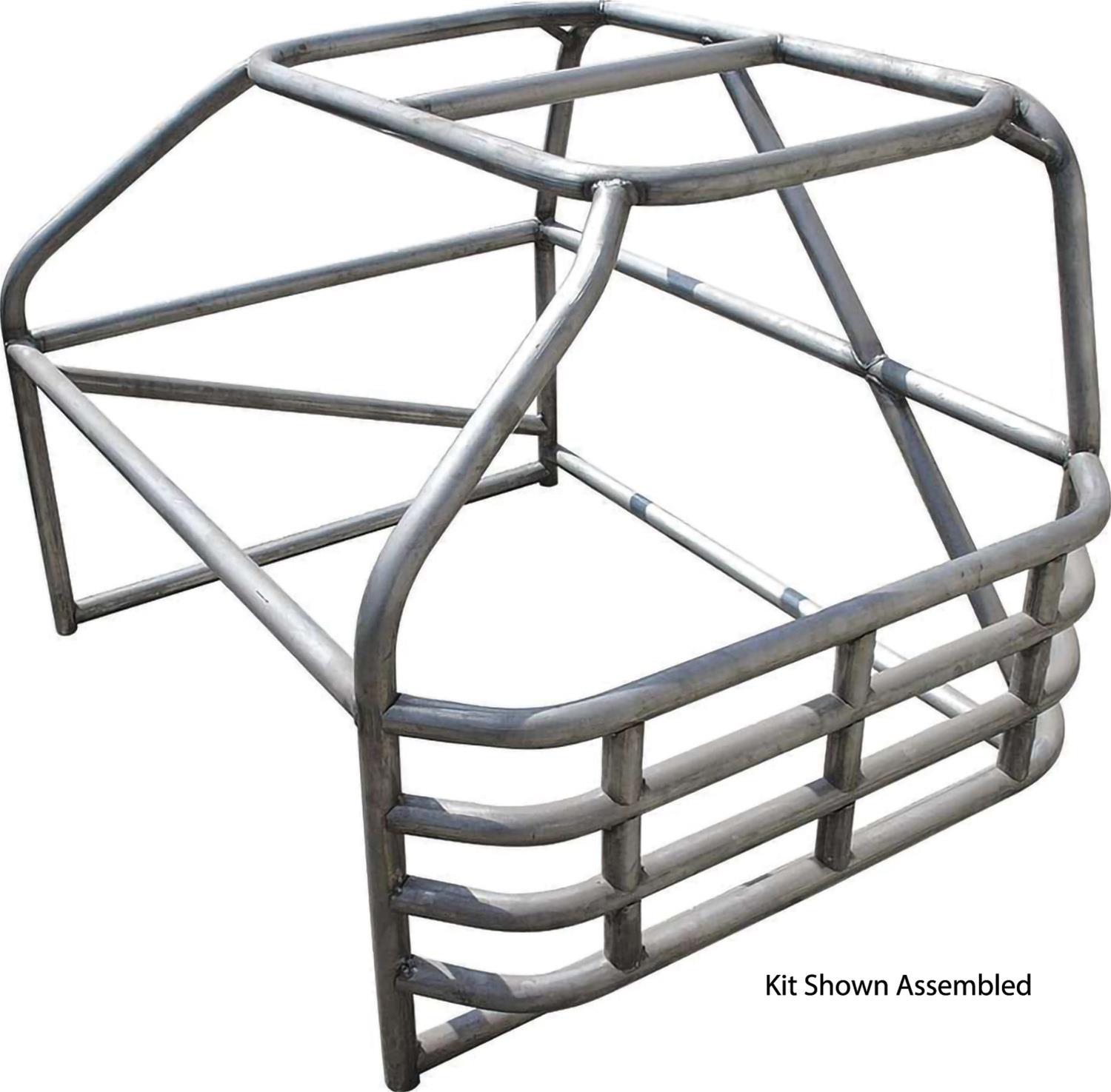

The Allstar Performance Deluxe Roll Cage Kit includes all pieces to assemble a Deluxe Roll Cage.

The main hoop is fitted and tack welded together allowing for changes or custom seat mounts. Curved windshield posts fit closer to windshield pillar increasing driver visibility. The halo is curved and gusseted into the main hoop for maximum width, driver clearance and support.

Mild 1-3/4", .095" wall steel tubing is notched and has uniform bends. Other features include four curved and one straight driver side door bars. "Z" type right side door bars, additional lower cross bar added to main hoop for added side support and assist in seat mounting, and a center halo support. ("A", "B", "C" and "D" measurements are outside-to-outside.)

  • Deluxe Roll Cage Kit
  • 1977-90 Caprice/Impala
  • MPN:  ALL22105

Specifications

Brand Allstar Performance
Part Number ALL22105
Product Line
Deluxe
Racing Type
Circle Track
Position
Complete
Number Of Floor Mounting Points
4-Point
Main Hoop Included
Yes
Gussets Included
Yes
Halo Included
Yes
Door Bars Included
Yes
Driver Side Door Bar Style
4 Bar
Passenger Side Door Bar Style
Z-Style
Front Dash Bar Included
Yes
Rear Dash Bar Included
Yes
Windshield Posts Included
Yes
Windshield Post Style
Curved
Tubing Diameter
1-3/4 in
Wall Thickness
0.095 in
Welding Required
Yes
Material
Steel
Color
Natural
Finish
Natural
Quantity
Kit

Diagram

  • Outside Dimensions "A": 57"
  • Outside Dimensions "B": 28"
  • Outside Dimensions "C": 41"
  • Outside Dimensions "D": 47"

Allstar Performance Deluxe Roll Cage Kit

Spec Sheet

Click here for the Allstar Deluxe Roll Cage Kit Spec Sheet.
