19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair) View larger
    19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair)
    19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair)19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair)19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair)

19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair)

Buy Brand Prime-Line 19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair), Model 646179480 online. Cabinet Hardware,Drawer Slides,Drawer-Slides,Prime-Line

$7.95

SAVE 50%-80% OFF

$3.98

Item Weight
1.18
Value
each

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair)

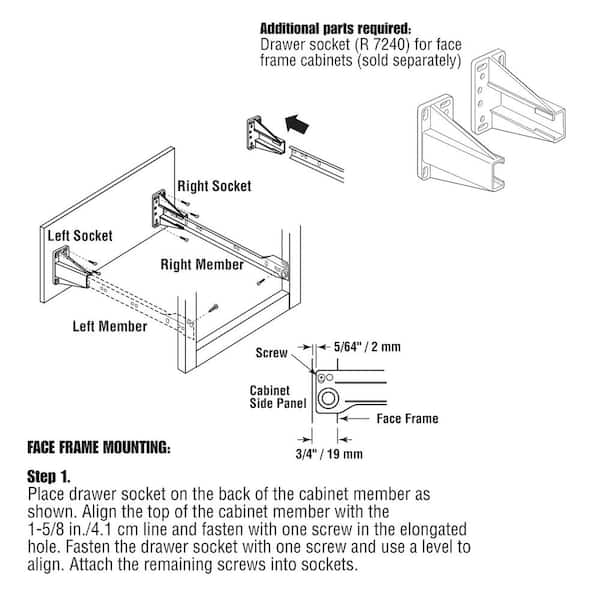

These drawer slide kits are constructed of steel tracks with plastic rollers and come in a white powder-coated finish. They feature a self-closing design that commences at the final 2-1/2 in. from the end of the 19-3/4 in. long tracks when closing. The maximum load capacity for this kit is 75 lbs., and it fits most bottom-mount drawer systems. This kit cannot be cut down to fit smaller drawer depths as it is designed with a positive stop at the ends of the fixed tracks, and because the rear rollers (11/16 in. Dia wheels) on the sliding tracks are fastened to the ends of the drawer-mounted track pieces. These bottom-mount drawer slides can be installed in drawer cabinets with face frames and without. If installing in drawer cabinet with face frame, Prime-Line's model number R-7240 (purchased separately) may be necessary if existing back plates are damaged. The clearance required between the drawer and the drawer opening for these types of slides is as follows: 1/2 in. on left and right sides, 1/4 in. at the bottom and 5/8 in. at the top. Installation instructions are included with each set, and they can also be found within the manufacturer’s website.

  • These drawer slides can be installed in cabinetry constructed with and without face frames, that have a depth of 20 in.
  • Durable steel-constructed drawer slides with plastic wheels designed for years of use
  • Designed with self-closing feature that begins towards the end of the slide
  • Easy to install slides fit most bottom-mount drawer systems
  • Maximum load capacity is 75 lbs.
  • Ideal for use in kitchen cabinets

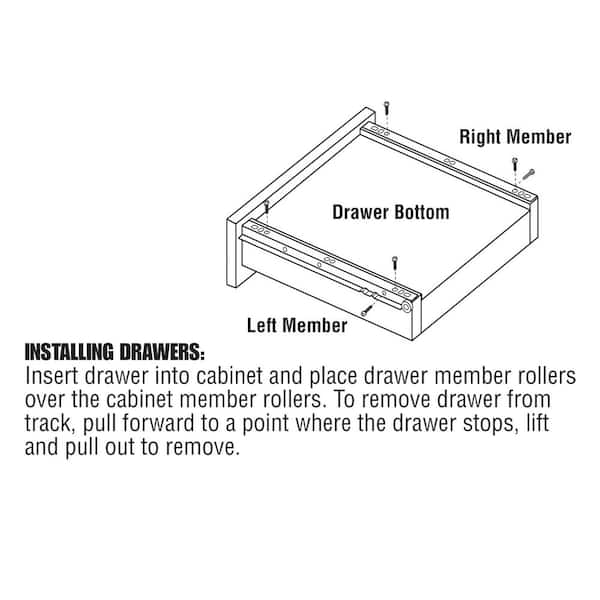

  • Installation fasteners and instructions are included

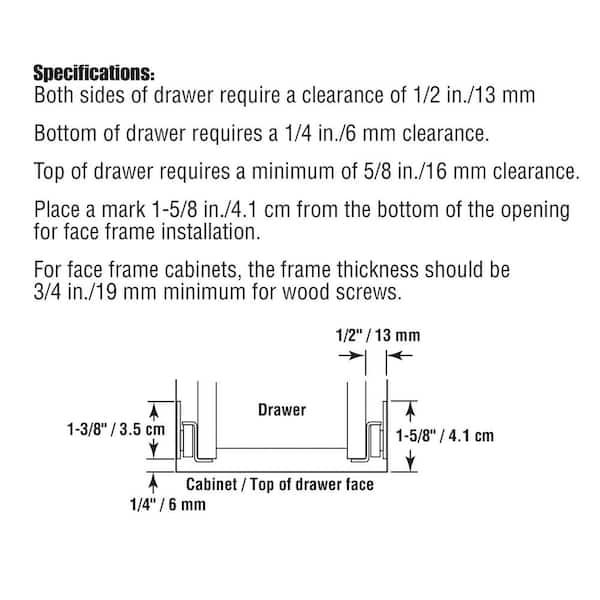

  • For further dimensional information, please see the line drawing



Features

Item Weight 1.18
Weight load per set (lb.) 75
Mount Type Bottom Mount
Slide System Regular
Finish Family White
Material Steel
Features Self Closing
Returnable 30-Day
Builders Hardware Product Type Drawer Slides
Drawer Slide Type Undermount
Package Quantity 1
Slide Length (In.) 20
Product Width (in.) 0.5
Maximum Expandable Length (in.) 20
Product Height (in.) 1.4375
Manufacturer Warranty Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.


Description

Product code: 19-3/4 in. White Painted Steel Bottom-Mount Self-Closing Drawer Slides (1-pair)
