View larger
Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11389-D
Buy Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11389-D, Model WIL140-11389-D online. Brakes and Drivetrain,Brakes
$1088.11
SAVE 50%-80% OFF
$326.43
$0 today, followed by 3 monthly payments of $3, interest free. Read More
Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11389-D
Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile 4-piston calipers, 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

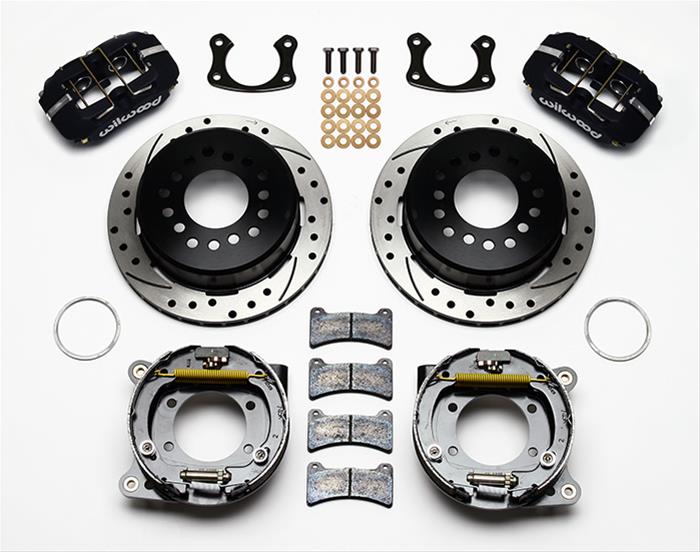

This is the solution for enthusiasts that require a rear disc brake kit with extra clearance for 14" to 15" wheels and a parking brake. Kits feature forged billet Dynapro 4-piston calipers with a special, low profile design. Each kit is sold complete with black anodized calipers, 11.00" diameter vented and drilled rotors, brake hats, caliper brackets, brake pads and necessary hardware.
- Brake System
- New Style Ford, 2.50" Offset
- Dynapro Low-Profile
- Rear
- 4 Piston Caliper
- 11.000 in Drilled / Slotted Iron Rotor
- Parking Brake / Offset Hat
- Aluminum, Black
- Big Ford
- Kit
- MPN: 140-11389-D
| Kit Summary | |
|---|---|

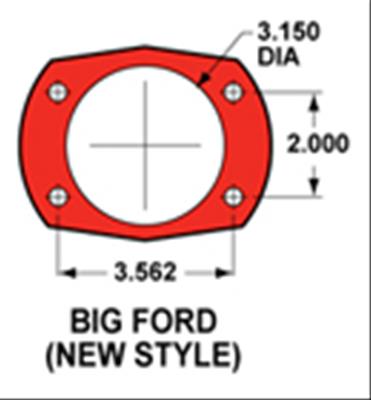

| Rear End Axle: | Big Ford New Style |
| Axle Offset: | 2.50 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11.00 |
| Min Wheel Diameter Req'd*: | 14 |

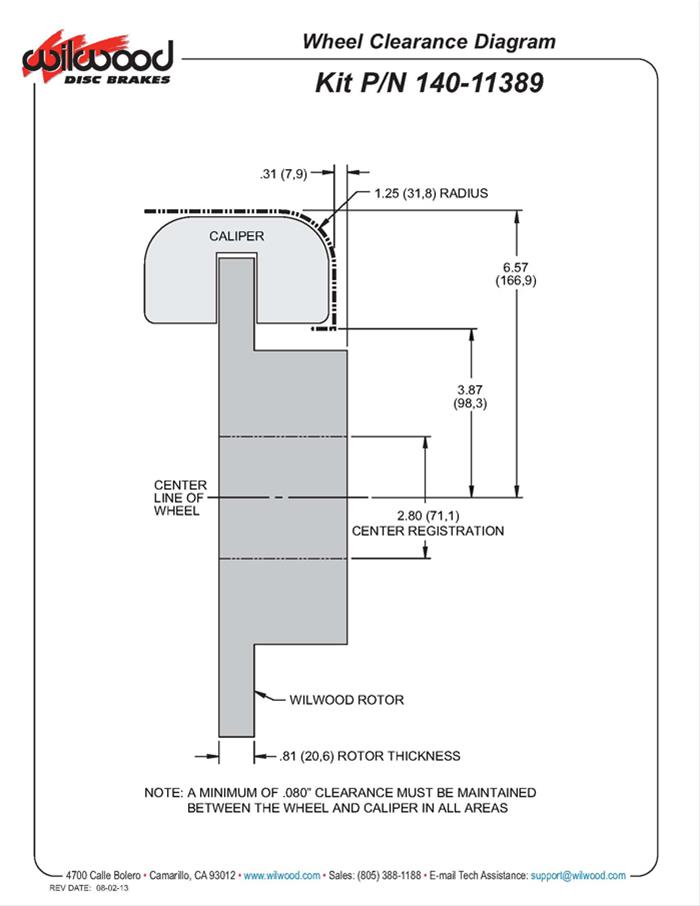

| *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. The wheel clearance diagram can be found in the photo gallery. | |
Specifications
| Brand | Wilwood |
| Part Number | 140-11389-D |
| Product Line | Dynapro Low-Profile |
| Front/Rear | Rear |
| Inboard/Outboard | Outboard |
| Axle Offset | 2.50 in |
| Rotor/Hat Construction | 1 Piece |
| Rotor Hat Offset | 1.91 in |
| Rotor Included | Yes |
| Rotor Diameter | 11 in |
| Rotor Thickness | 0.81 in |
| Drilled Rotor | Yes |
| Slotted Rotor | Yes |
| Vented/Solid Rotor | Vented |
| Rotor Material | Iron |
| Rotor Color | Black |
| Rotor Finish | Paint |
| Caliper Included | Yes |
| Caliper Piston Quantity | 4 |
| Caliper Material | Aluminum |
| Caliper Color | Black |
| Caliper Finish | Anodized |
| Brake Caliper Brackets Included | Yes |
| Brake Caliper Bracket Material | Aluminum |
| Brake Caliper Bracket Color | Black |
| Brake Caliper Bracket Finish | Paint |
| Brake Pads Included | Yes |
| Brake Pad Compound | BP-10 |
| Wheel Studs Included | No |
| Parking Brake | Yes |
| Parking Brake Style | Internal Drum |
| Parking Break Cable | No |
| Brake Hoses Included | No |
| Hardware Included | Yes |
| Minimum Wheel Diameter | 14 in |
| Wheel Bolt Pattern | 5 x 4.5 in | 5 x 4.75 in | 5 x 5 in |
| Quantity | Kit |
Fitment
Brake Kit: Forged Dynapro Low-Profile Rear Parking Brake Kit
This Brake Kit is Compatible with the Following Vehicle Makes:
- Rear End: Big Ford New Style - Rear Kit
- Axle Offset: 2.50
Description
Product code: Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11389-D
