Dana-Spicer Driveshaft Assembly Kit 10020345 - Jeep Wrangler JK

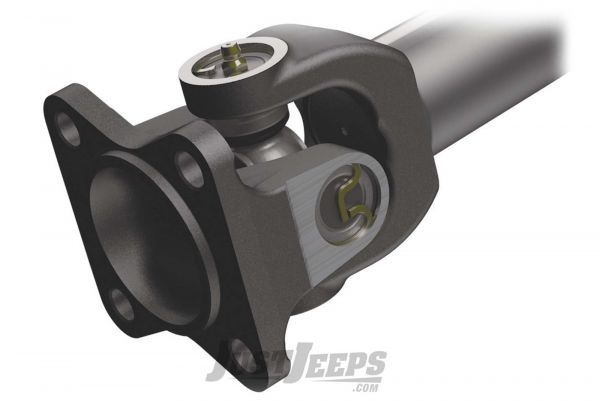

Drive Shaft Assembly Kit - Jeep Wrangler JK Dana 30/44 Front, Wrangler JL/Gladiator JT Dana 30/44 AdvanTEK Front - 1310 Series

Wherever limits are pushed, Dana is there. Spicer performance driveshafts for the Jeep Gladiator have been specifically designed off road punishment. Fitting Gladiators with 0 to 6 inch lifts these shafts yield better balance, greater strength and less vibration than other aftermarket alternatives. Features 50% thicker tubing for added strength and small diameter design to eliminate exhaust clearance issues on lifted vehicles. We engineer our parts to deliver peak performance and optimum strength so you can hit the road, the track, or the trail with confidence that comes from knowing you are backed by the industry leader in driveline technology.

  • Drive Shaft
  • Spicer
  • 35.945 in Long
  • 2 in OD
  • 1310 U-Joints
  • Chromoly
  • Jeep Wrangler 2007-20
  • Sold as each

Specifications

Brand Spicer
Part Number 10020345
Series 1310
Material Steel
Tube Size (Mm) 50.7 X 3.04
Tube Size (In) 2 X .120
Slip (Mm) 115
Slip (In) 4.527
Cl Yoke To Cl Yoke(MM) - COLL. 913
Cl Yoke To Cl Yoke(IN) - COLL. 35.945
Note Transfercase Double Cardan Yoke Included
VMRS 024000000
Package Type Each
Package Qty 1
Weight 28 lb
Country of Origin United States

Fitment

Year Make Model Location Fitment Notes
2007 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2008 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2009 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2010 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2011 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2012 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2013 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2014 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2015 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2016 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2017 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2018 Jeep Wrangler
 Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2018 Jeep Wrangler JK Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2019 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
2020 Jeep Wrangler Front with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included
