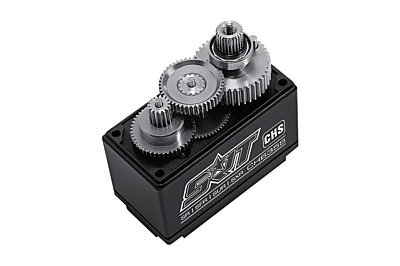

SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo View larger
    SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
    SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless ServoSRT CH620S HV (0.09s/20.0kg/8.4V) Coreless ServoSRT CH620S HV (0.09s/20.0kg/8.4V) Coreless ServoSRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo

SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo

Buy SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo, Model CH620S online. New Arrivals,Servo & receivers,SRT Servo,SERVO & RECEIVERS,Σερβομηχανισμοί - Servo

$61.87

SAVE 50%-80% OFF

$43.31

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.

Features:
  • Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
  • Incredible efficiency and low power consumption
  • Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications:
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
Control system: Pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0V): 0.12 sec/60 degrees at no load
Operating speed (7.4V): 0.10 sec/60 degrees at no load
Operating speed (8.4V): 0.09 sec/60 degrees at no load
Stall torque (6.0V): 14.0kg.cm (194.4 oz/in)
Stall torque (7.4V): 18.0kg.cm (250.0 oz/in)
Stall torque (8.4V): 20.0kg.cm (277.7 oz/in)
Potentiometer drive: Direct drive
Dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
Weight: 69.0g (2.43 oz)
Connector wire length: jr 300 mm

Description

Product code: SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
