Traxxas 4-Tec 2.0 BL-2s 4WD TQ w/o Body, Battery & Charger

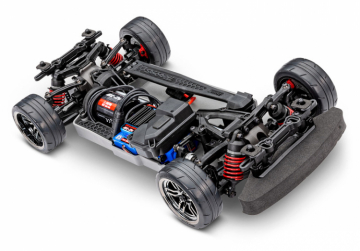

Traxxas 83124-4 - 1/10 Scale 4-Tec 2.0 Brushless AWD Chassis

The 4-Tec 2.0 AWD chassis provides the ultimate on-road driving experience with more power than ever before. The high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. The modular interlocking design allows easy maintenance while the finely tuned suspension keeps the wheels glued to the pavement for maximum on-road performance. The new BL-2s brushless power system delivers effortless power for 64+ kph* speed with an added boost of torque for 4-wheel burnouts and powerful acceleration.

Choose your own body, battery, and charger (sold separately) to create your custom ride!

FEATURES ON 4-TEC 2.0 BRUSHLESS AWD CHASSIS (83124-4):

• NEW BL-2s brushless power system
• Waterproof BL-2s speed control with low-voltage detection for LiPo batteries
• 3300 kV brushless motor with internal cooling fan
• Adjustable chassis accepts standard 200 mm bodies
• Full-time AWD
• TQ™ 2.4 GHz radio system
• Waterproof electronics for all-season excitement
• Low-CG fiber-composite monocoque chassis with high approach angle front bumper
• Race-proven sealed differentials

New Brushless Power
4-Tec’s new BL-2s brushless power system is an absolute game-changer with 15% more speed, quicker acceleration, and a more responsive throttle. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow 4-Tec to run battery after battery for all day fun. With no brushes to wear out, the BL-2s 3300 kV is long-lasting and requires virtually no maintenance.


Choose Your Body Style
4-Tec's revolutionary adjustable body mounts and wheelbase accommodate a wide variety of 200 mm bodies. You can also choose from several pre-painted and ready-to-mount Traxxas bodies - click the complementary products tab.



4-Tec 2.0 (83124-4) SPECS:

• Length: 379 mm
• Front Width: 196 mm
• Rear Width: 200 mm
• Center Ground  Clearance: 9 mm
• Weight: 1.28 kg
• Height (overall): 62 mm
• Wheelbase: 256 mm
• Shock Length: Short (front and rear)
• Tire Diameter: 66 mm
• Tire Width (front): 26 mm
• Tire Width (rear): 30 mm
• Wheel Diameter: 1.9" (48 mm)
• Speed Control Type: BL-2s™ brushless electronic speed control
• Motor (electric): BL-2s™ 3300 kV brushless
• Overall Drive Ratio: 9.49
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 48 pitch
• Chassis Structure/Material: Molded tub / Nylon composite
• Drive System: Shaft-driven, direct drive AWD
• Steering: Dual-bellcrank
• Radio System: TQ™ 2.4 GHz radio with 6519 3-channel micro receiver
• Skill Level: 1
• Top Speed: 64+ kph*
• Battery Tray: L158 x W46 x H23/26 mm
• Required Items (sold separately): 4 "AA" batteries (for transmitter), charger, 6 or 7-cell NiMH or 2-cell LiPo battery

*With optional gearing and 2s LiPo battery (items sold separately)

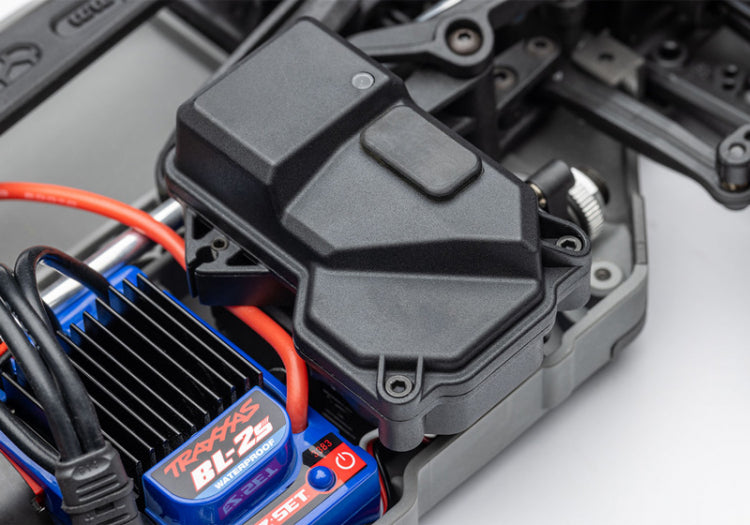

BL-2s (WATERPROOF) ESC SPECIFICATIONS:

• Input voltage: 6-7 Cells NiMH (7.2 to 8.4 volts) or 2s LiPo (7.4/8.4 volts)
• Case Size: 39 x 59 x 31 mm
• Weight: 87 g
• BEC Voltage: ­ 6.0 volts
• Low Voltage Detection (LVD): ­ 2-stage indicators, switchable (on or off)
• Thermal Protection: ­ 2- stage thermal shutdown
• Single-button setup: ­ Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV

*Patented ­ ­



BL-2s 3300 kV Brushless Motor Specs:

• Type: Sensorless brushless motor
• Weight: 213 g
• Length: ­80 mm
• Diameter: 36 mm
• Connector Type: Traxxas Quick Connect Motor Plug
