SRT M11 1/12 Pancar HV CORELESS Servo

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

Features:
  • Special 1/12 pancar servo
  • Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
  • Incredible efficiency and low power consumption
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications:
Type Digital
Bearing Dual
Motor Type Coreless
Gear Type Metal
Gear Material Titanium & Steel
Control System Pulse width control
Working Frequence 1520μs / 333hz
Operating Voltage dc6.0-8.4v
Operating Temperature Range  -10 to + 60 degree
Operating Speed (6.0V) 0.07 sec/60 degrees at no load
Operating Speed (7.4V) 0.065 sec/60 degrees at no load
Operating Speed (8.4V) 0.055 sec/60 degrees at no load
Stall Torque (6.0V) 7.0kg.cm (97.2 oz/in)
Stall Torque (7.4V) 8.0kg.cm (111.1 oz/in)
Stall Torque (8.4V) 9.0kg.cm (125.0 oz/in)
Potentiometer Drive Direct Drive

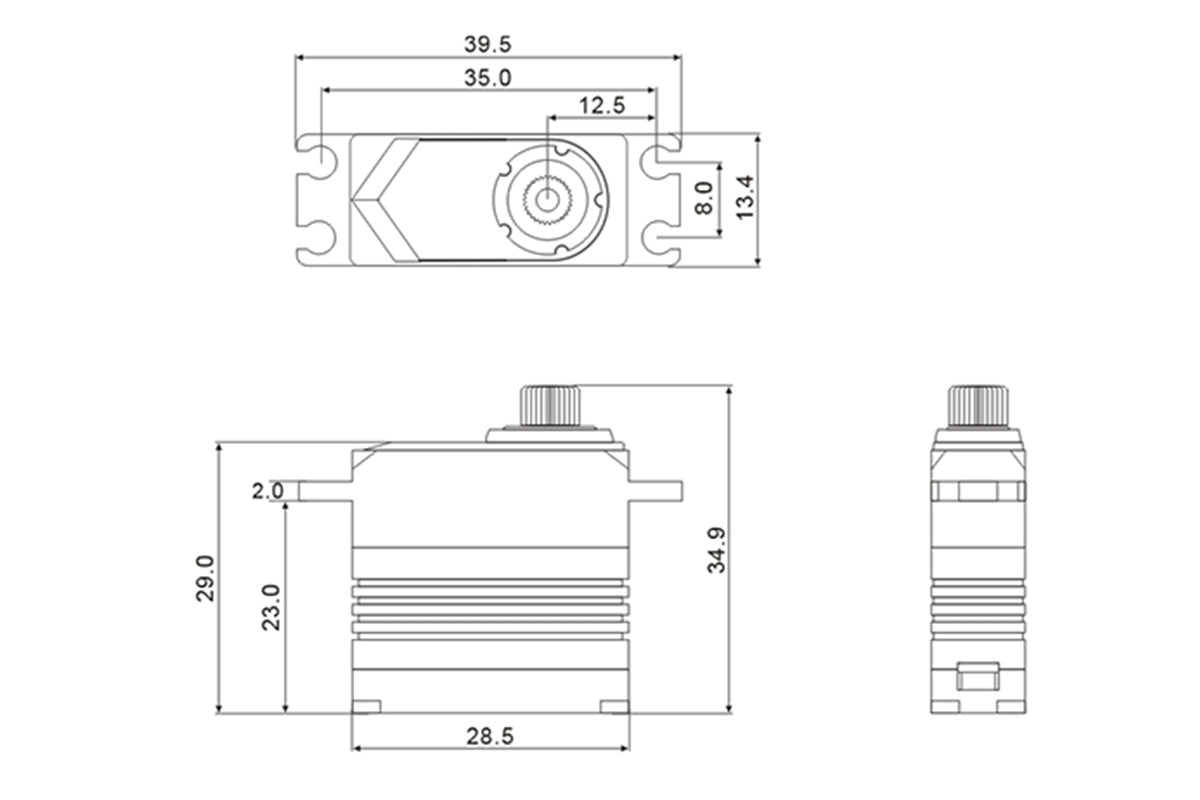

Dimensions 28.5x13.4x29.0 mm /1.12x0.53x1.14 in
Weight 28.0g (1.0 oz)
Connector Wire Length JR 170 mm

Description

Product code: SRT M11 1/12 Pancar HV CORELESS Servo
