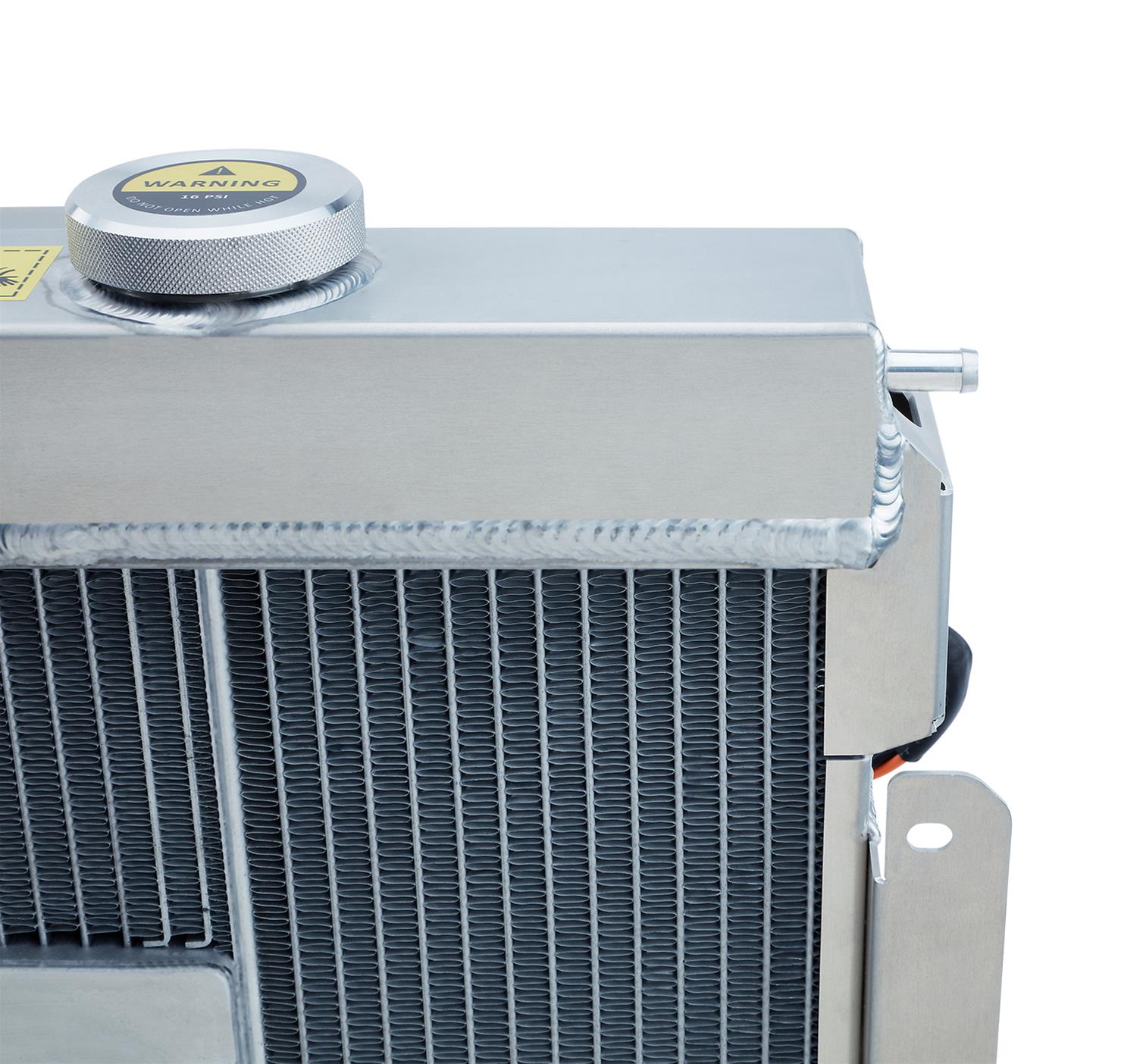

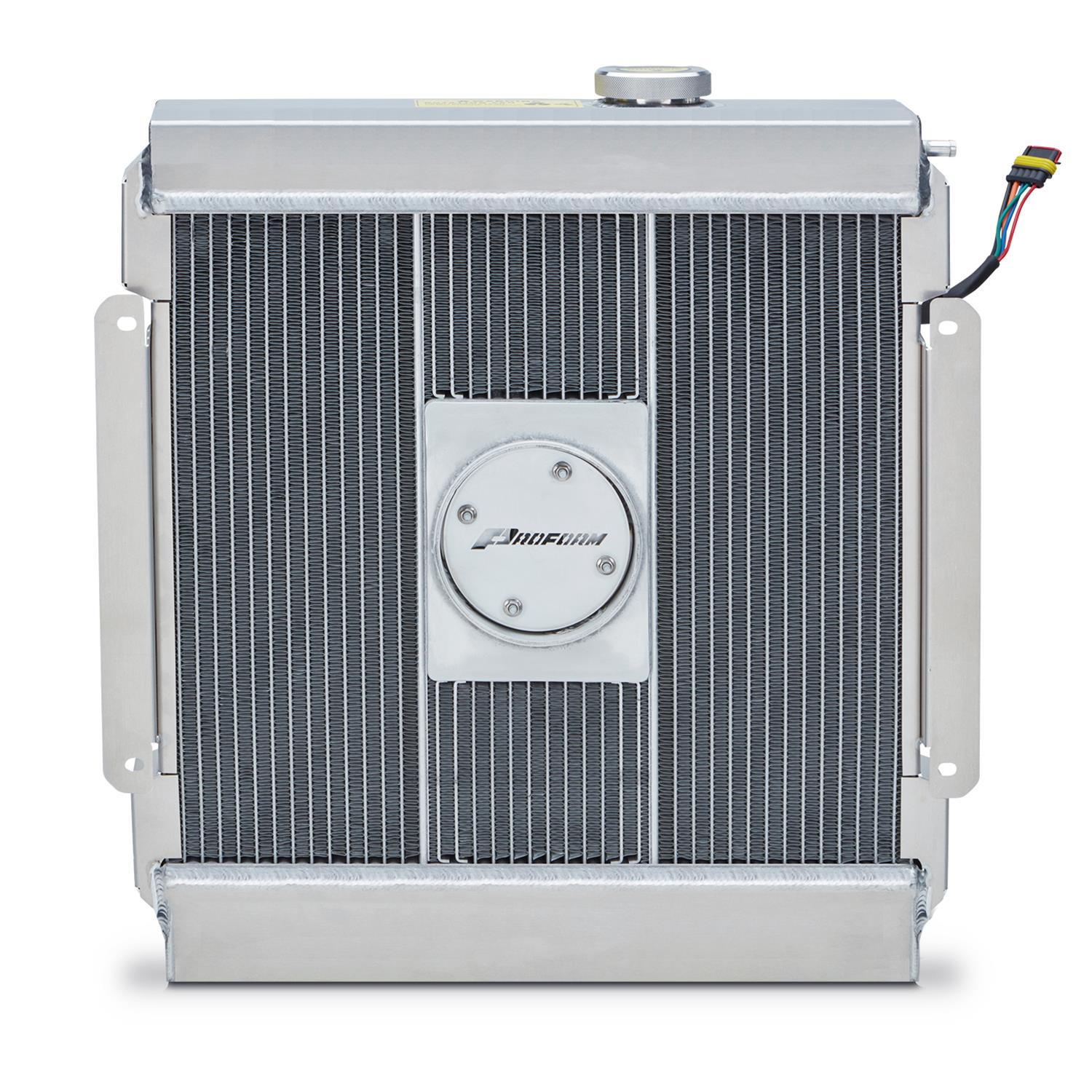

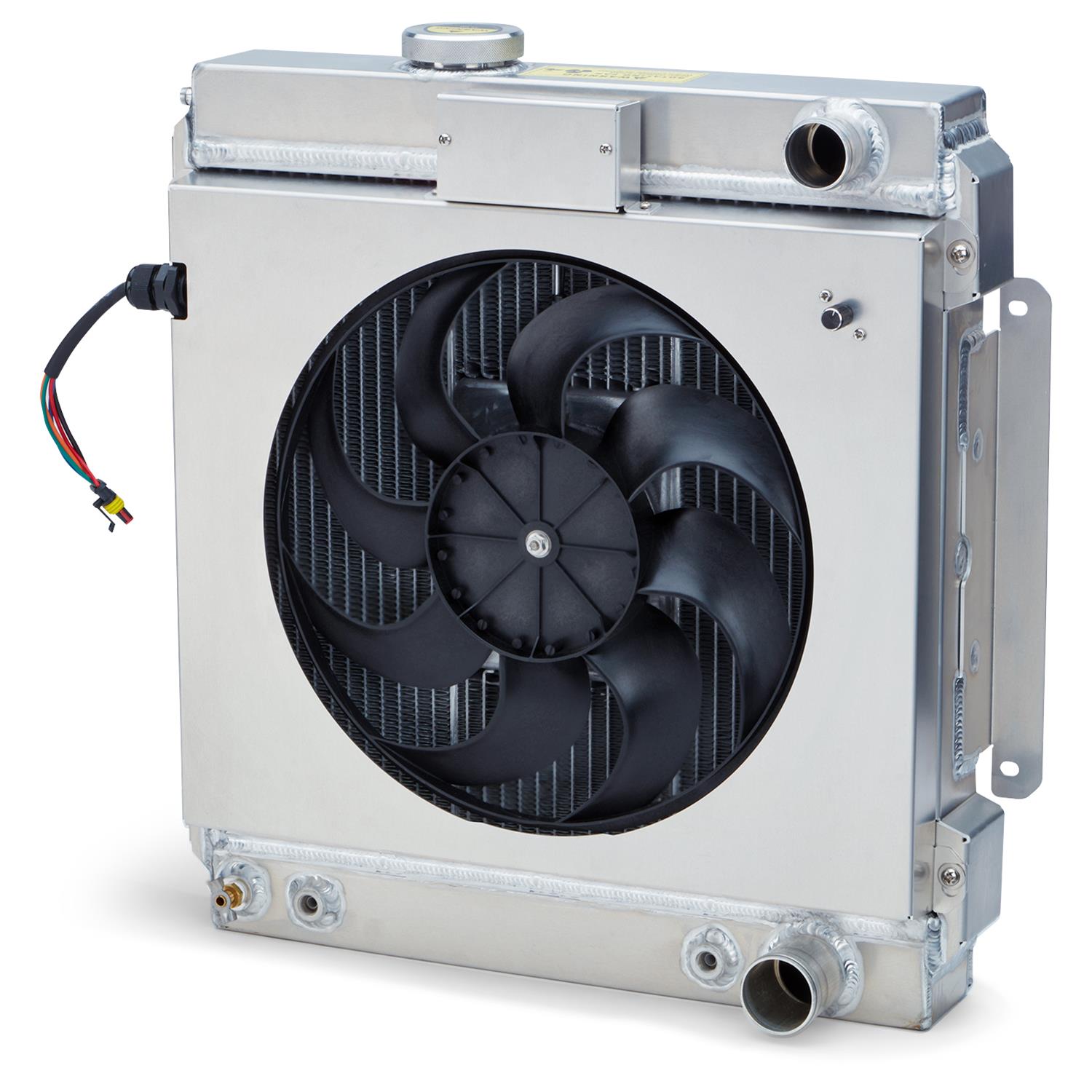

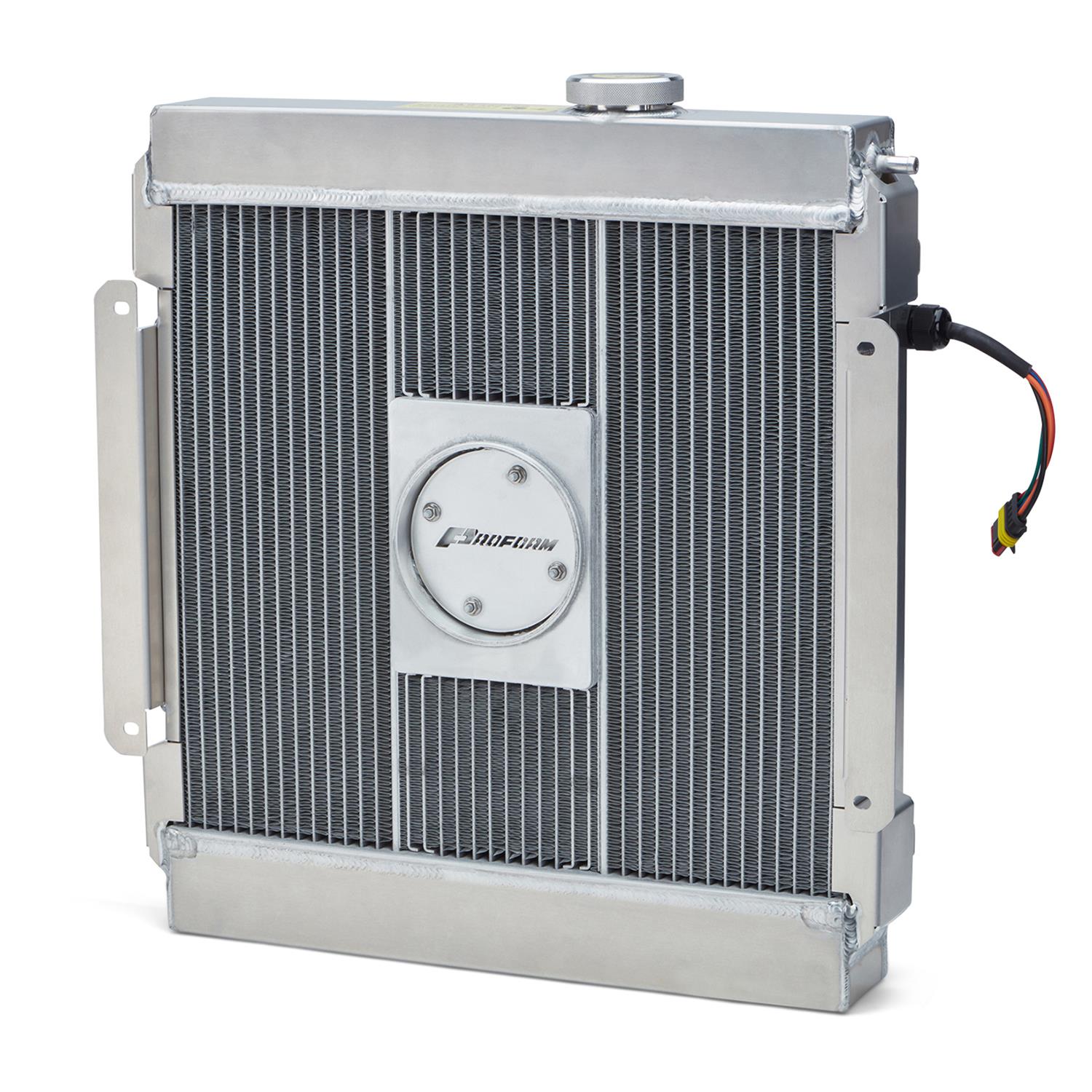

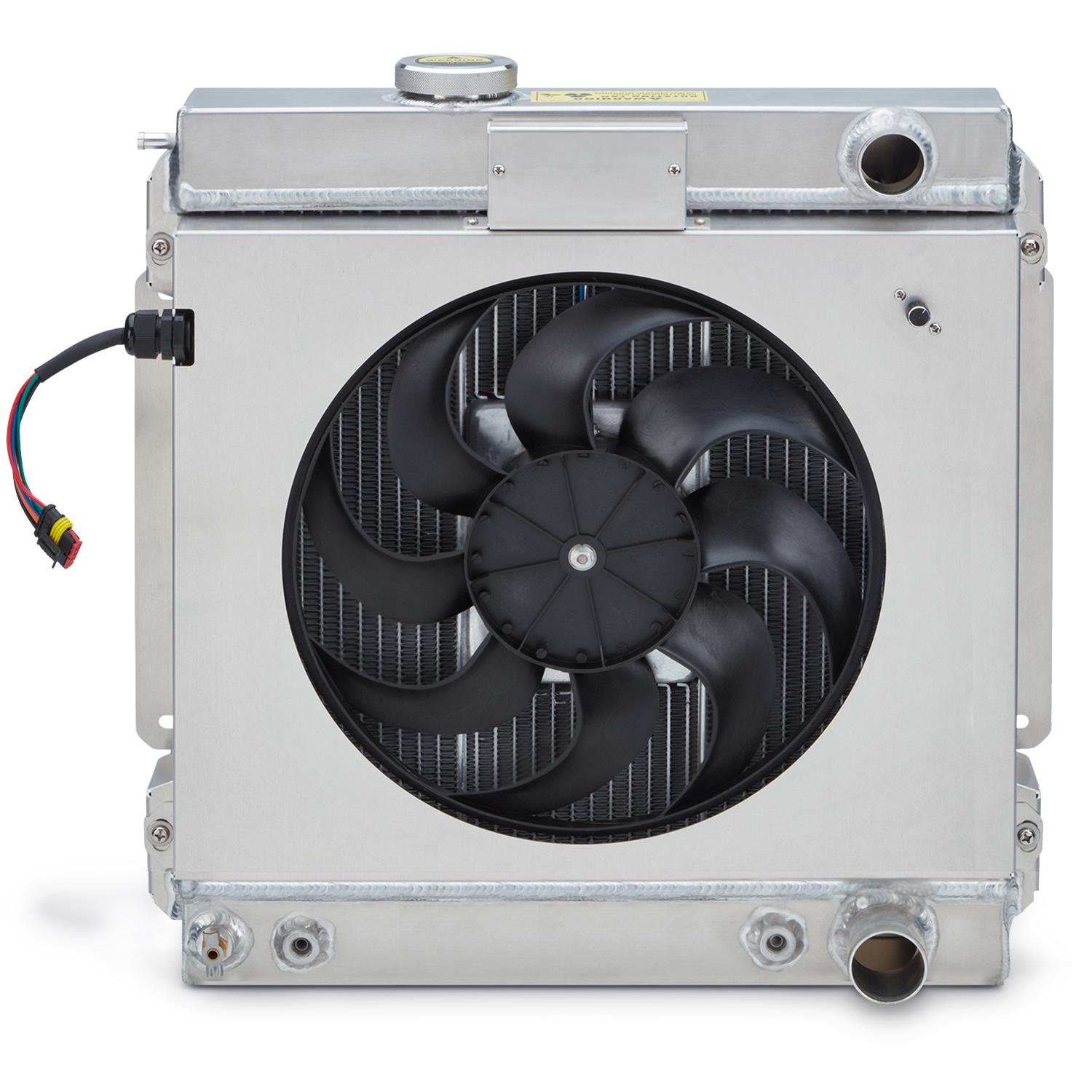

Proform Slim-Fit Radiator System Direct Fit 69681.2 for Mustang
Buy Proform Slim-Fit Radiator System Direct Fit 69681.2 for Mustang, Model PFM69681.2 online. Heating and Cooling,Heating And Cooling
$799.99
SAVE 50%-80% OFF
$240.00
$0 today, followed by 3 monthly payments of $3, interest free. Read More
Proform Slim-Fit Radiator System Direct Fit 69681.2 for Mustang
Fits 1964-66 Mustang
Passenger Side Outlet, Automatic Transmission
- Radiator + Shroud + Fan = Less Than 4-in. Thick
- Completely assembled
- All Aluminum construction; natural finish
- Hybrid extruded tube core technology with proprietary engineered louvers
- Beautifully Tig-welded fabricated tanks
- 5 Plate automatic trans cooler
- Features patented remote high-capacity overflow tube with billet filler neck
- Patented innovation and design
- Thread-in adjustable thermostat included
- PROFORM parts brand product
- Sold as complete system
- Fits: 1964-66 Mustang
- Part Number: 69681.2
Where's the filler neck overflow tube? We hid it so you don't have to look at that ghastly rubber tube right when you open the hood! The basic concept of automotive radiators hasn't changed in more than 100 years! And fans have been hung onto them in a mish-mash of ways for just as long. Since then, aside from materials and design improvements, NOTHING HAS CHANGED...UNTIL NOW!
PROFORM is upending the radiator industry with the introduction of its new Slim-Fit Radiator System! No more cobbling together a core, a fan, possibly a shroud, and gobbling up 8" of valuable front-to-back under-hood space, sometimes leading to clearance problems.
BETTER DESIGN - UP TO 40% THINNER! AND SLEEK LOOKING!
PROFORM has completely rethought how the radiator, fan, thermostat, and shroud can come together seamlessly to create a unified radiator system that is under 4" thick, looks and works great, and is pre-assembled right out-of-the-box, ready for direct fit into your American V8 muscle car! A hodge-podge of one hundred years of rigged-up cooling paraphernalia has come to an end.
INNOVATION!
What did we do? With revolutionary engineering we flipped the motor around so instead of hanging on the outside, it's integrated directly into a uniquely designed core made with state-of-the-art brazing technology (with no meaningful cooling compromise). The core itself is a hybrid combination of traditional duel 1" tubes, and full core width extruded tubes. Combine this with a high-performance fan blade inserted into a smooth aluminum shroud, the result is the industry's thinnest, most streamlined look. Every PROFORM Slim-Fit Radiator includes a shroud, electric fan with adjustable thermostat, wiring harness, and radiator cap.
Specifications
| Brand | Proform |
| Part Number | 69681.2 |
| Product Line | Slim-Fit |
| Application Specific | Yes |
| Pass | Single |
| Row Number | 2 |
| Overall Width | 19-13/32 in |
| Overall Height | 20-19/32 in |
| Overall Depth | 4 in |
| Core Width | 17-11/16 in |
| Core Height | 15-9/16 in |
| Core Depth | 2-1/4 in |
| Inlet Side | Passenger Side |
| Inlet Upper/Lower | Upper |
| Inlet A Size | 1-1/2 in |
| Inlet A Style | Hose Barb |
| Inlet Quantity | 1 |
| Outlet Side | Passenger Side |
| Outlet Upper/Lower/Middle | Lower |
| Outlet A Size | 1-3/4 in |
| Outlet A Style | Hose Barb |
| Outlet Quantity | 1 |
| Tube Size | 1 in |
| Fluid Cooler | Yes |
| Flow Direction | Downflow |
| Cap Included | Yes |
| Filler | Yes |
| Fan Included | Yes |
| Fan Quantity | 1 |
| Fan CFM | 1650 cfm |
| Blade Material | Plastic |
| Blade Color | Black |
| Shroud Material | Aluminum |
| Shroud Color | Natural |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Each |
