Aeromotive Brushless 5.0 GPM Gear Pump Fuel Cell and Pump 18393

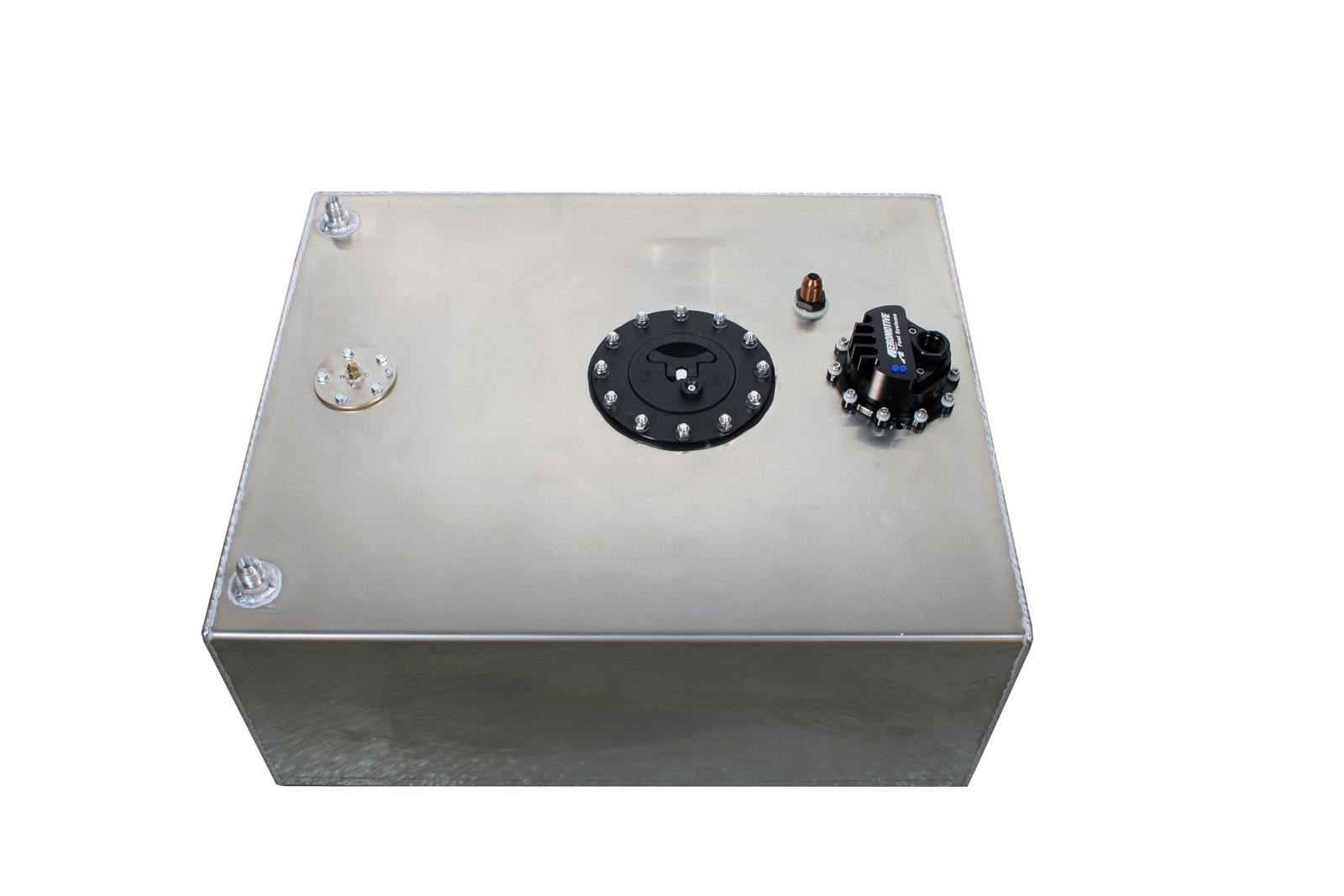

Aeromotive Brushless 5.0 Spur Gear 20 Gallon Fuel Cell with Variable Speed Controller 18393 has ground shaking performance and advanced technology.

Twenty (20) gallon Racing Fuel Cell with 5.0 Brushless Gear Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent. This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and many of the MOPAR Drag Pack cars.

  • Baffled design keeps fuel at the pump inlet
  • Fluted pickup with integrated 100-m pre-filter
  • Fuel Cell Dimensions: 20″w x 24″l x 10″h

This Gear Pump Fuel Cell and Pump has ground shaking performance and more:

Fuel injected engines: GAS

  • up to 3400 FWHP – naturally aspirated
  • up to 2600 FWHP – forced air induction

Carbureted engines: GAS

  • Up to 3600 FWHP – naturally aspirated
  • Up to 2700 FWHP – forced air induction

Fuel injected engines: E85

  • up to 2380 FWHP – naturally aspirated
  • up to 1820 FWHP – forced air induction

Carbureted engines: E85

  • Up to 2520 FWHP – naturally aspirated
  • Up to 1890 FWHP – forced air induction

Fuel injected engines: METHANOL

  • up to 1,190 FWHP – naturally aspirated
  • up to 910 FWHP – forced air induction

Carbureted engines: METHANOL

  • Up to 1,260 FWHP – naturally aspirated
  • Up to 945 FWHP – forced air induction

Features:

  • Lighter than the traditional Pro-Series pump.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • New integral spur-gear pumping mechanism.
  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • ORB-10 outlet port.
  • Requires straight 12-VDC to 16-VDC power supply.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
  • Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

  • Brushless 5.0 GPM Gear Pump Fuel Cell
  • Brushless 5.0 Spur Gear 20 Gallon Fuel Cell with Variable Speed Controller
  • Fuel Cell and Pump, 5.0 Brushless Stealth Fuel Cell, 20 gal, 20 x 24 x 10 in Tall, 10 AN O-Ring Outlet, 8 AN Return, 8 AN Vents, Variable Speed Control, Aluminum, Natural, E85 / Gas / Methanol, Universal
  • Sold as Each
  • Part Number: 18393
