Cold Case Radiators 65-66 Ford Mustang 289 Radiator MT
Buy Cold Case Radiators 65-66 Ford Mustang 289 Radiator MT, Model CCRFOM564 online. Heating and Cooling,Heating And Cooling
$363.95
SAVE 50%-80% OFF
$109.19
$0 today, followed by 3 monthly payments of $3, interest free. Read More

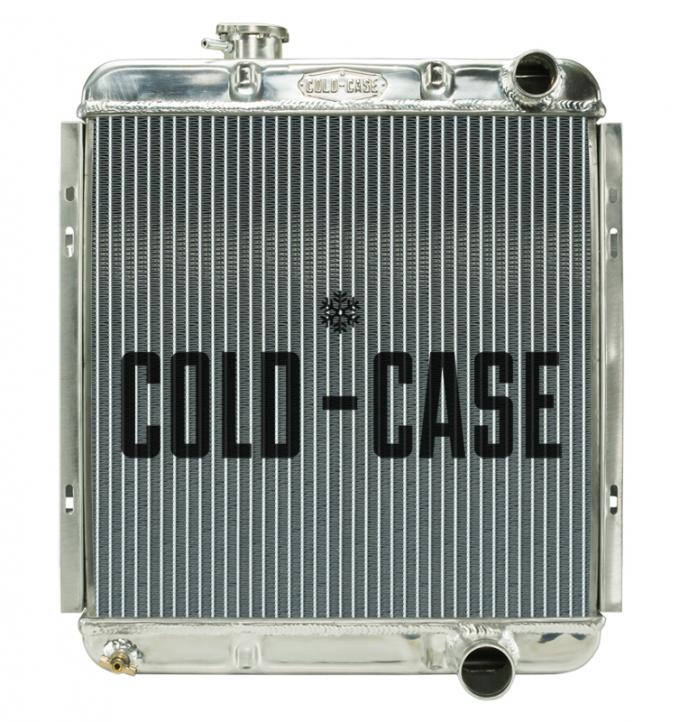

Cold Case Radiators 65-66 Ford Mustang 289 Radiator MT
1964.5-1966 Ford Mustang 289 Aluminum Performance Radiator. MT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. Original fan shroud will mount with original mounting brackets.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual trans
- Direct fitment for 64.5-66 Mustang w/ 289 V8
- Radiator - 19.6 in W x 21 in H x 3 in D - Passenger Side Inlet - Passenger Side Outlet - Aluminum - Natural - Manual - Small Block Ford - Ford Mustang 1964-66
Radiator Specs:
- Core Height 16.5 inch
- Core Width 16.85 inch
- Overall Height 21 inch
- Overall Width 19.6 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
Specifications
| Brand | Cold Case Radiators |
| Part Number | FOM564 |
| Old Part Number | RPE564 |
| Application Specific | Yes |
| Pass | Single |
| Row Number | 2 |
| Overall Width | 19-19/32 in |
| Overall Height | 21 in |
| Overall Depth | 3 in |
| Core Width | 16-27/32 in |
| Core Height | 16-1/2 in |
| Inlet Side | Passenger Side |
| Inlet Upper/Lower | Upper |
| Inlet Size | 1-3/4 in |
| Inlet Style | Hose Barb |
| Inlet Quantity | 1 |
| Outlet Side | Passenger Side |
| Outlet Upper/Lower/Middle | Lower |
| Outlet Size | 1-3/4 in |
| Outlet Style | Hose Barb |
| Outlet Quantity | 1 |
| Tube Size | 1-1/4 in |
| Flow Direction | Downflow |
| Cap Included | No |
| Material | Aluminum |
| Color | Polished |
| Finish | Polished |
| Quantity | Each |
Fitment
Vehicle Type: Car
Transmission Type: Manual
Make: Ford, Mercury
Cylinders: V8
Fits:
1960 - 1965 Mercury Comet
1961 - 1963 Mercury Comet S-22
1962 - 1963 Mercury Comet Custom
1963 - 1965 Ford Falcon
1963 - 1965 Ford Falcon Futura
1963 - 1965 Ford Falcon Futura Sprint
1964 - 1965 Mercury Comet 202
1964 - 1965 Mercury Comet 404
1964 - 1966 Ford Mustang
Fitment Notes:
65-66 Mustang 289 with Manual Transmission, 63-65 Comet
