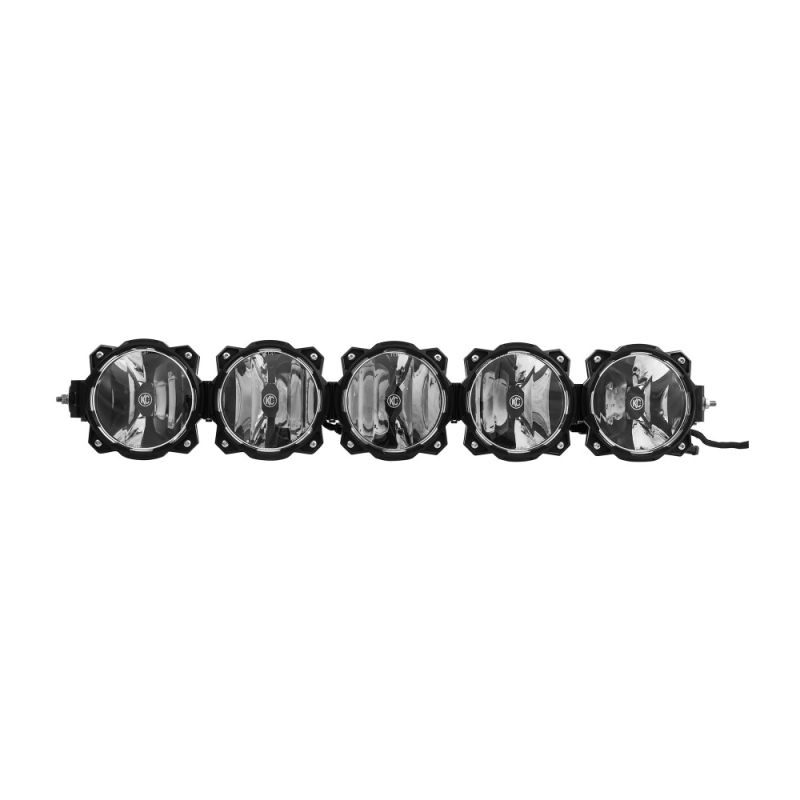

KC HiLiTES Pro6 Gravity LED 32" Light Bar 91306

The KC Gravity® LED Pro6 Light Bar is an industry first, allowing users to be in full control of their lighting needs. Featuring KC's patented Infinity Ring™ System, the Pro6 LED light bar is modular, expandable, and adjustable. The Infinity Ring™ system via its unique hinge design allows users to easily transform the Pro6 light bar between a straight and curved orientation, with adjustable widths between 20"- 57". Every Pro6 system is powered by a chain of individual, 20W Gravity LED Pro6 inserts which take advantage of KC's patented Gravity Reflective Diode technology. This translates to unparalleled light clarity. output, low amp draw and an usable beam pattern. If you are looking for the ultimate performance led light bar for your Jeep, Truck or UTV, KC's Pro6 LED light bar system has you covered. All Pro6 LED Light Bars are priced with vehicle specific mounting kits (Pro6 Universal LED Light Bars do not come with mounts)

• Patented Pro6 Infinity Ring™ System: Easily transform the Pro6 light bar between straight or curved light orientations
• Every Pro6 is powered by KC patented Gravity® Reflective Diode(GRD) technology for unparalleled beam shape, light performance and clarity
• Gravity® G6 LED reflector optics utilizing a combination of Driving and Wide-40 Beam pattern lights for optimal lighting balance and performance
• Modular design is expandable to different size widths and beam patterns to suit specific applications
• Gravity® LED Pro6 5-Light 32" Universal Combo LED Light Bar without Light Mounts - #91306
• MPN: 91306

Specifications

LIGHT PERFORMANCE

• Raw Lumens: 32" 11,500 lm
• Lux @ 10 Meters: 32" 4,200 lx
• Candela: 32" 420,000 cd
• Beam Distance (Meters): 32" 1,296m


SPECIFICATIONS

• Wattage: 32" 100W
• Amp Draw: 5.0-14.67A
• LED Source: Cree XPL HD LED
• LED Color: 5000K
• Voltage: 9-32V
• IP Rating: IP68 Dimensions:
• 32” 5-Light = H - 6.06" x D - 3.33" x W - 32.875" (Straight) / 32.708" (Curved)

Parts Included With Pro6 LED Light Bar System

• (1) Gravity® Pro6 LED Light Bar
• Light Covers - Black with Yellow KC Logo
• Mounting Brackets and Hardware in Vehicle specific kit
• Note: Light Bar Mounting Brackets not included with Universal Light Bar Systems
• Performance Plug-N-Play Wiring Harness with Illuminated LED Switch


PATENTED GRAVITY® REFLECTIVE DIODE TECHNOLOGY
Each Gravity® LED Pro6 light is powered by KC's G6 LED optical insert, featuring patented Gravity® Reflective Diode (GRD) technology. This unique industry leading technology and reflector design assures that actual emitted light output from each LED is being maximized in creating powerful, usable light for everyday off road use. Unlike traditional forward facing reflector designs commonly found in LED lights today, KC GRD technology strategically positions LEDs inside the reflector so that the all light output is being carefully directed and aimed to deliver usable light. What you get is highly targeted light distribution, providing unparalleled clarity, performance and beam shape.

PATENTED INFINITY RING™ SYSTEM
As an industry first, the Pro6 allows you to take full control of your specific lighting needs. Pro6 LED light bars feature a patented Infinity Ring™ system utilizing individual rings to securely link individual 6" Pro6 LED lights together to form a rigid, powerful LED light light bar system. The unique hinge and bolt design in every ring allows for endless modularity, expandability and adjustability to suit your lighting needs. This means seamless transition between straight, radius or hybrid radius light bar orientations to angle lights exactly how you see fit.

COMBO BEAM PATTERN FOR COMPLETE LIGHTING COVERAGE
Gravity LED Pro6 light bars are specifically configured using a combination of SAE/ECE Driving and Wide-40 G6 LED optical inserts. The combination of different reflector optics provides a broader range of visibility and homogenous light beam shape, for more usable lighting coverage. Driving Beam lights provide powerful forward distance and equal beam distribution width, while the Wide-40 beam offer a wider area of coverage, increasing side to side peripheral visibility. This not only results in incredible light output distance, but also evenly balanced light distribution and beam shape that translates to light output that you can actually use for all of your off road lighting adventures.

RACE TESTED DURABILITY AND CONSTRUCTION
Inspired by endurance racing and tested by KC endurance racers worldwide, the Pro6 is set to break all performance barriers while providing the most durable, robust and scalable LED light bar design available today.

Available Part Numbers

• Gravity® LED Pro6 3-Light 20" Universal Combo LED Light Bar - #91318
• Gravity® LED Pro6 4-Light 26" Universal Combo LED Light Bar - #91319
• Gravity® LED Pro6 5-Light 32" Universal Combo LED Light Bar without Light Mounts - #91306
• Gravity® LED Pro6 6-Light 39" Universal Combo LED Light Bar without Light Mounts - #91307
• Gravity® LED Pro6 8-Light 50" Universal Combo LED Light Bar without Light Mounts - #91308
• Gravity® LED Pro6 Polaris RZR 5-Light 32" Combo LED Light Bar with Light Mounts - #91309
• Gravity® LED Pro6 Yamaha YXZ1000R 6-Light 39" Combo LED Light Bar with Light Mounts - #91310
• Gravity® LED Pro6 10-14 Ford F-150/Raptor 8-light 50" Combo LED Light Bar with Light Mounts - #91311
• Gravity® LED Pro6 07-18 Jeep JK 8-Light 50" Combo LED Light Bar with Light Mounts - #91313
• Gravity® LED Pro6 7-Light 45" Universal Combo LED Light Bar - #91314
• Gravity® LED Pro6 9-Light 57" Universal Combo LED Light Bar - #91315
• Gravity® LED Pro6 13-16 Can-Am Maverick/Commander 6-Light 39" Combo LED Light Bar with Light Mounts - #91316
• Gravity® LED Pro6 14-17 Arctic Cat Wildcat 6-Light 39" Combo LED Light Bar with Light Mounts - #91327
• Gravity® LED Pro6 05-18 Toyota Tacoma 8-light Combo LED Light Bar – #91331
• Gravity® LED Pro6 17-18 Ford F-150/ Raptor 9-Light 57" Combo LED Light Bar - #91333
• Gravity® LED Pro6 17-18 Can-Am Maverick X3 7-Light 45" Combo LED Light Bar - #91334
• Gravity® LED Pro6 7-Light 45" Radius Universal Combo LED Light Bar - #91397
• Gravity® LED Pro6 8-Light 50" Radius Universal Combo LED Light Bar - #91398
• Gravity® LED Pro6 97-06 Jeep TJ 8-Light Combo Beam LED Light Bar - #91337
• Gravity® LED Pro6 LED Light Bar - 50" Jeep Wrangler JL & Gladiator JT 8-Ring - #91336
