Dart SBF SHP Cylinder Head 128222 - 175cc/62cc (Assembled)

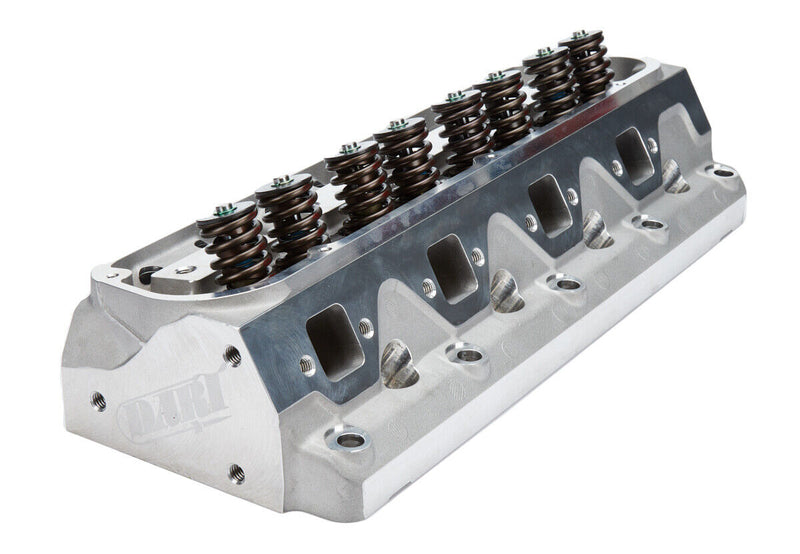

SHP Cylinder Heads For SB Ford

Affordable, aluminum cylinder heads for small block Fords feature stock intake port location and .135" raised exhaust ports for improved flow. Cylinder heads are offered with 175cc or 205cc intake runners with 58cc or 62cc combustion chambers. Engineered for use with 3/8" or 7/16" stud mount rockers, heads are sold individually, bare or completely assembled.

  • SBF SHP Cylinder Head 175cc/62cc
  • SHP
  • Assembled
  • 2.050 in / 1.600 in Valve
  • 175 cc Intake
  • 62 cc Chamber
  • 1.437 in Springs
  • Angle Plug
  • Aluminum
  • Small Block Ford
  • MPN: 128222

Specifications

Brand
Dart
Part Number
128222
Product Line
SHP
Assembled/Bare
Assembled
Chamber Volume
62 cc
Plug Angle
Angle
Intake Runner Volume
175 cc
Intake Port Shape
Rectangle
Intake Port Location
Stock
Intake Port Height
1.992 in
Intake Port Width
1.162 in
Exhaust Port Shape
Square
Exhaust Port Location
Stock
Exhaust Port Height
1.331 in
Exhaust Port Width
1.266 in
Intake Valve Size
2.020 in
Intake Valve Included
Yes
Intake Valve Material
Stainless
Intake Valve Length
4.890 in
Exhaust Valve Size
1.600 in
Exhaust Valve Included
Yes
Exhaust Valve Material
Stainless
Exhaust Valve Length
4.890 in
Valve Spring Included
Yes
Valve Spring Diameter
1.437 in
Valve Spring Number
Dual
Valve Spring Damper
Yes
Valve Spring Retainers Included
Yes
Valve Spring Retainer Material
Steel
Valve Locks Included
Yes
Valve Lock Material
Steel
Valve Seal Included
Yes
Valve Seal Style
Positive Stop
Rocker Studs Included
Yes
Rocker Stud Size
3/8-24 in
Pushrod Guide Plate Included
Yes
Guide Plate Pushrod Size
5/16 in
Valve Guide Included
Yes
Valve Guide Material
Bronze
Perimeter Mount Valve Cover
Yes
Valve Seat Included
Yes
Intake Valve Seat Material
Powdered Metal
Exhaust Valve Seat Material
Powdered Metal
Valve Seat Finish
Machined
Combustion Chamber Finish
As Cast
Intake Runner Finish
As Cast
Exhaust Runner Finish
As Cast
Accessory Bolt Holes
Drilled and Tapped
Material
Aluminum
Logo
Dart
Color
Natural
Finish
Natural
Quantity
Each

Description
