Buy Wilwood Forged Narrow Superlite 4R Rear Disc Big Brake Kit Red Ford New Style, Model WIL140-9219-DR online. Brakes and Drivetrain,Brakes
$1947.24
SAVE 50%-80% OFF
$584.17
$0 today, followed by 3 monthly payments of $3, interest free. Read More

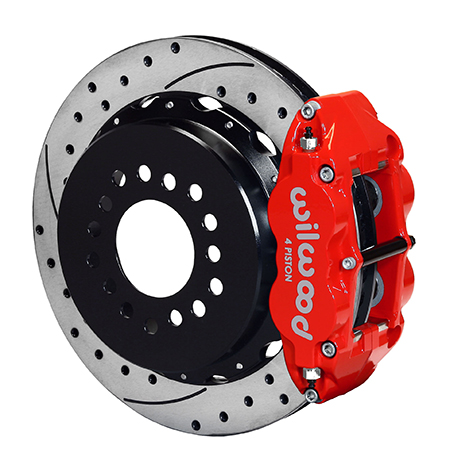

Forged Narrow Superlite 4R Rear Disc Big Brake Kit
Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high-performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
Brake System - 4R - Front - 4 Piston Caliper - 12.875 in Drilled / Slotted Rotor - Offset - Aluminum - Red Anodize - Big Ford New Style - Kit - MPN: 140-9219-DR
Brand | Wilwood |
Part Number | 140-9219-DR |
Product Line | Forged Narrow Superlite 4R Big Brake |
Front/Rear | Rear |
Inboard/Outboard | Outboard |
Axle Offset | 2.50 in |
Rotor/Hat Construction | 2 Piece |
Rotor Hat Included | Yes |
Rotor Hat Offset | 1.54 in |
Rotor Hat Material | Aluminum |
Rotor Hat Color | Black |
Rotor Hat Finish | Paint |
Rotor Included | Yes |
Rotor Diameter | 12.88 in |
Rotor Thickness | 1.1 in |
Drilled Rotor | Yes |
Slotted Rotor | Yes |
Vented/Solid Rotor | Vented |
Rotor Material | Iron |
Rotor Color | Black |
Rotor Finish | Paint |
Caliper Included | Yes |
Caliper Piston Quantity | 4 |
Caliper Material | Aluminum |
Caliper Color | Red |
Caliper Finish | Powder Coat |
Brake Caliper Brackets Included | Yes |
Brake Caliper Bracket Material | Aluminum |
Brake Caliper Bracket Color | Black |
Brake Caliper Bracket Finish | Paint |
Brake Pads Included | Yes |
Brake Pad Compound | BP-10 |
Wheel Studs Included | No |
Parking Brake | Yes |
Parking Brake Style | Internal Drum |
Parking Brake Cable | No |
Brake Hoses Included | No |
Hardware Included | Yes |
Minimum Wheel Diameter | 17 in |
Wheel Bolt Pattern | 5 x 4.5 in | 5 x 4.75 in | 5 x 5 in |
Quantity | Kit |
