Home / Outlet/ Brands/ BBC 305cc Aluminum Cylinder Heads Assembled 2100

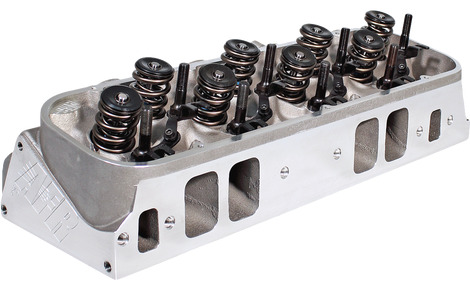

BBC 305cc Aluminum Cylinder Heads Assembled 2100 View larger
    BBC 305cc Aluminum Cylinder Heads Assembled 2100
    BBC 305cc Aluminum Cylinder Heads Assembled 2100BBC 305cc Aluminum Cylinder Heads Assembled 2100BBC 305cc Aluminum Cylinder Heads Assembled 2100BBC 305cc Aluminum Cylinder Heads Assembled 2100

BBC 305cc Aluminum Cylinder Heads Assembled 2100

Buy Brand Air Flow Research BBC 305cc Aluminum Cylinder Heads Assembled 2100, Model AFR2100 online. Engines and Components,Engines And Components

$3576.00

SAVE 50%-80% OFF

$1072.80

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

BBC 305cc Aluminum Cylinder Heads Assembled 2100

Big Block Chevy Magnum Aluminum Cylinder Heads

Promising big horsepower, Magnum 24° heads are available with 305cc, 315cc, 325cc, 335cc, 345cc, 357cc, and 385cc intake runners. The 305cc, 315cc, and 325cc heads are recommended for 396-509 cu. in. street/strip engines; larger 345cc, 357cc, and 385cc are ideal for 509-632 cu. in. bracket or “Super” class use. The 335cc, 357cc, and 385cc heads listed have high flow, CNC-ported runners. All heads are sold in pairs, completely assembled with stainless valves, valve springs, retainers, locks, and seals.

  • Partial CNC-Ported

Cylinder Head - Magnum Comp - Assembled - 2.250 / 1.880 in Valves - 305 cc Intake - 117 cc Chamber - 1.625 in Springs - Aluminum - Big Block Chevy - Sold as a Pair - Brand: Air Flow Research - Part Number: 2100

Specifications

Brand
Air Flow Research
Part Number
2100
Product Line
Magnum Comp
Assembled/Bare
Assembled
Chamber Volume
117 cc
Plug Angle
Angle
Intake Runner Volume
305 cc
Exhaust Runner Volume
132 cc
Intake Port Shape
Rectangle
Intake Port Location
Stock
Intake Port Height
2.380 in
Intake Port Width
1.680 in
Exhaust Port Shape
Round
Exhaust Port Location
Raised
Exhaust Port Raised Distance
0.375 in
Exhaust Port Height
1.720 in
Exhaust Port Width
1.920 in
Intake Valve Size
2.250 in
Intake Valve Included
Yes
Intake Valve Material
Stainless
Intake Valve Length
5.500 in
Exhaust Valve Size
1.880 in
Exhaust Valve Included
Yes
Exhaust Valve Material
Stainless
Exhaust Valve Length
5.450 in
Valve Spring Included
Yes
Intended Camshaft Style
Solid Roller
Maximum Lift
0.850 in
Maximum RPM
7600
Valve Spring Diameter
1.625 in
Valve Spring Number
Dual
Valve Spring Damper
No
Valve Spring Retainers Included
Yes
Valve Spring Retainer Material
Chromoly
Valve Locks Included
Yes
Valve Lock Material
Chromoly
Valve Lock Angle
10 Degree
Valve Seal Included
Yes
Valve Seal Style
Positive Stop
Valve Seal Material
Viton
Rocker Studs Included
Yes
Rocker Stud Size
7/16-20 in
Pushrod Guide Plate Included
Yes
Guide Plate Pushrod Size
3/8 in
Valve Guide Included
Yes
Valve Guide Material
Bronze
Perimeter Mount Valve Cover
Yes
Valve Seat Included
Yes
Intake Valve Seat Material
Ductile Iron
Exhaust Valve Seat Material
Ductile Iron
Valve Seat Finish
Machined
Combustion Chamber Finish
As Cast
Intake Runner Finish
As Cast
Exhaust Runner Finish
As Cast
Intake Valve Angle
24 Degree
Exhaust Valve Angle
15 Degree
Material
Aluminum
Color
Natural
Finish
Natural
Quantity
Pair

Description
