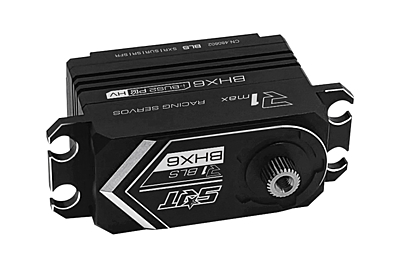

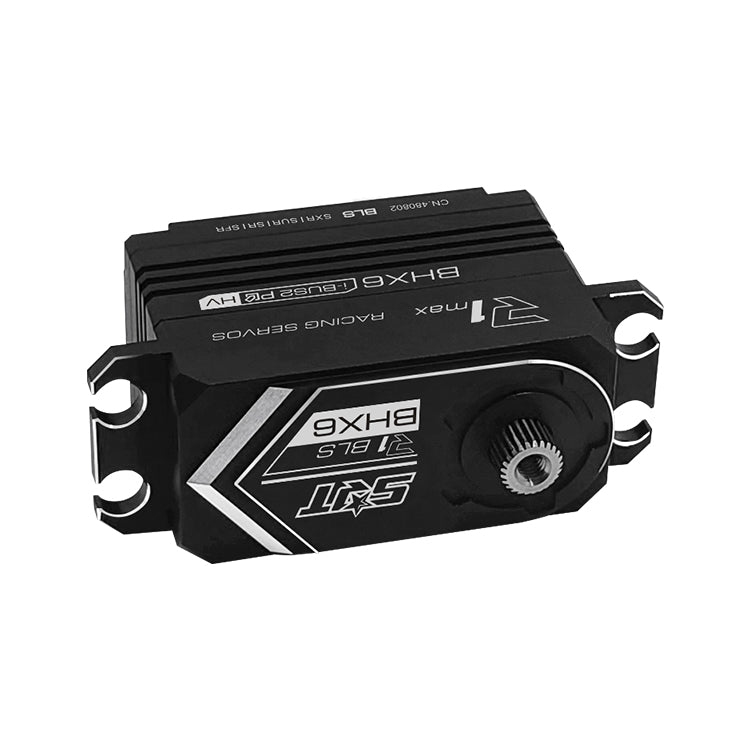

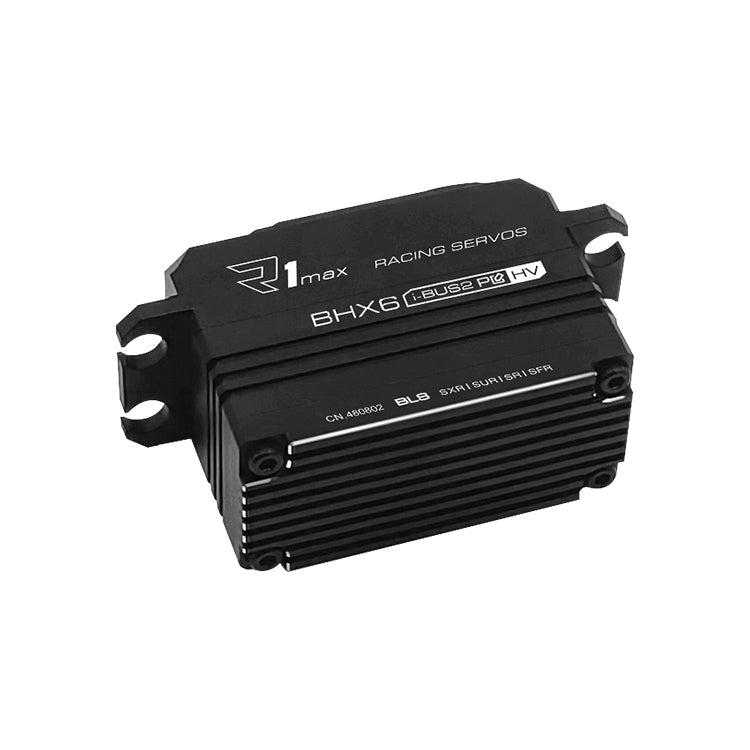

SRT BHX6 LW HV (0.053s/35kg/8.4V) Brushless Digital Servo

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

Features:
  • Ideal for 1/10 on road and 1/8 off road scale applications
  • Superior Holding Torque
  • Incredible efficiency and low power consumption
  • Standard dimension make it perfect for vehicles that can benefit from a high quality servo
  • CNC Machined aluminum case for exceptional cooling
  • Programmable High torque Brushless servo
  • Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
  • 25T output shaft
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications:
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
Control system: Pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0V): 0.08 sec/60 degrees at no load
Operating speed (7.4V): 0.065 sec/60 degrees at no load
Operating speed (8.4V): 0.053 sec/60 degrees at no load
Stall torque (6.0V): 25.0kg.cm (347.2 oz/in)
Stall torque (7.4V): 30.0kg.cm (416.6 oz/in)
Stall torque (8.4V): 35.0kg.cm (486.1 oz/in)
Potentiometer drive: Direct drive

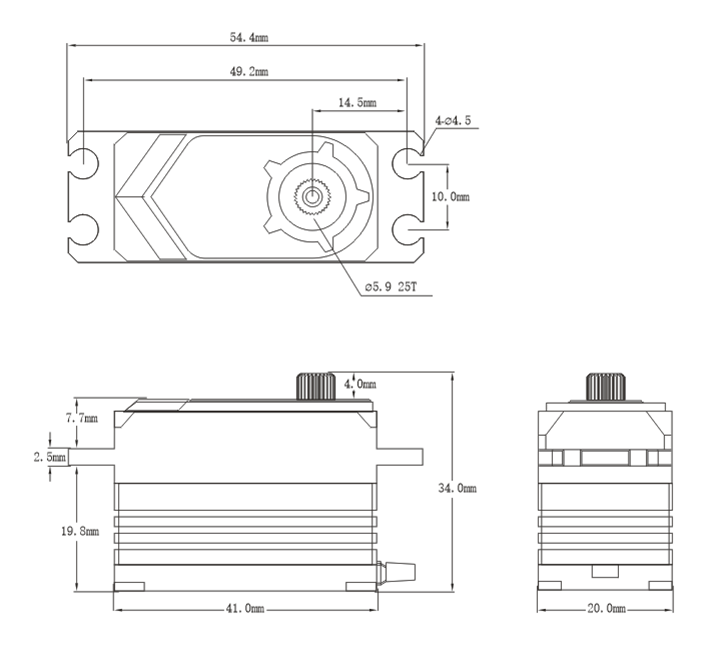

Dimensions: 41.0 x 20.0 x 30.0 mm /1.61 x 0.79 x 1.18 in
Weight: 66.0g (2.33 oz)
Connector wire length: jr 300 mm

Description

Product code: SRT BHX6 LW HV (0.053s/35kg/8.4V) Brushless Digital Servo
