Home / Outlet/ Brands/ 36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device
36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device View larger
    36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device
    36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device

36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device

Buy Brand In Stock Hardwarestore Delivery 36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device, Model 203384165 online. Door Accessories

$178.85

SAVE 50%-80% OFF

$53.66

Item Weight
9.869.82
Finish
Stainless SteelAluminum

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device

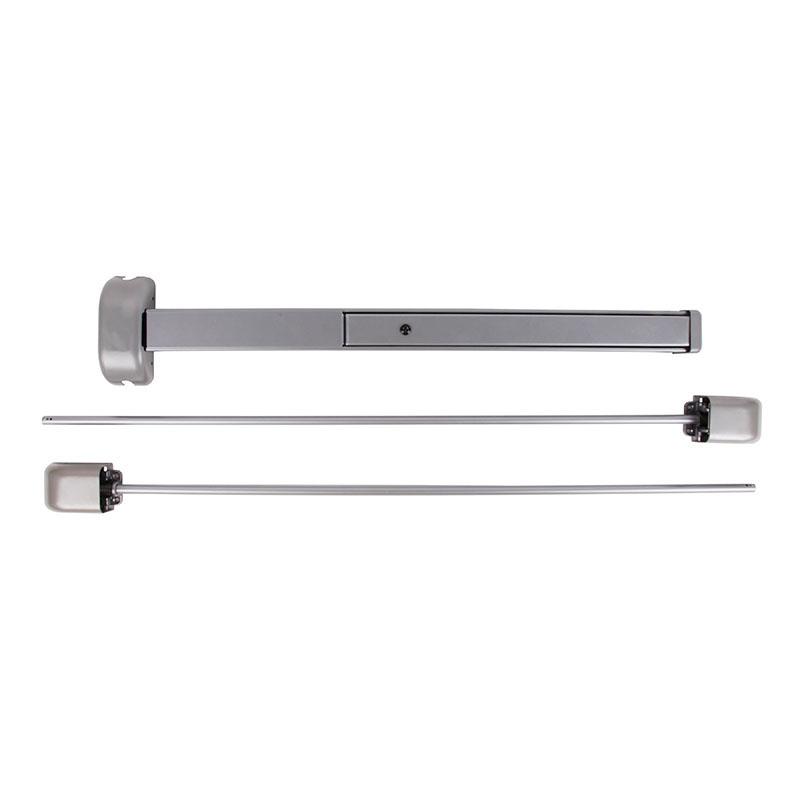

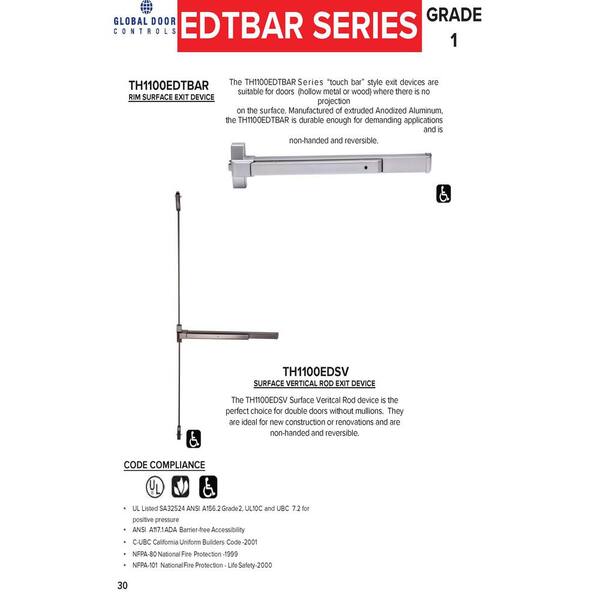

The Global Door Controls TH100EDSVTBAR model is a 36 in. surface vertical rod touch/panic bar exit device in an aluminum finish. It is the perfect choice for the double doors without mullions. Reversible for right or left hand doors. They are made of anodized aluminum with stainless steel springs and are ideal for new construction or renovations.
  • Latch: top pullman type, bottom bolt assembly
  • Door height: 7 ft. standard
  • Backset: 2-3/4 in. on 4-1/2 in. minimum stile width (if less than 4-1/2 in. backset becomes half of the exposed stile width)
  • Strike: top-surface mounted; bottom-flat mortise or into threshold
  • Handing: reversible, non-handed
  • Door width: 36 in., can be field sized to 30 in.
  • Mounting height: recommended installation at 41 in. from finished floor to center of push rail
  • Fasteners: furnished with sheet metal and machine screws
  • Stile: 4-1/2 in. minimum
  • Door thickness: 1-3/4 in. standard
  • Cylinder (not included): accepts rim cylinders, all trims schalge "C" keyway
  • UL SA32524


Features
Item Weight 9.86
Door Handing Universal
Builders Hardware Product Type Exit Devices
Finish Aluminum
Material Aluminum
Commercial/Residential Commercial
Function Exit Only
Returnable 180-Day
Hardware Finish Family Silver

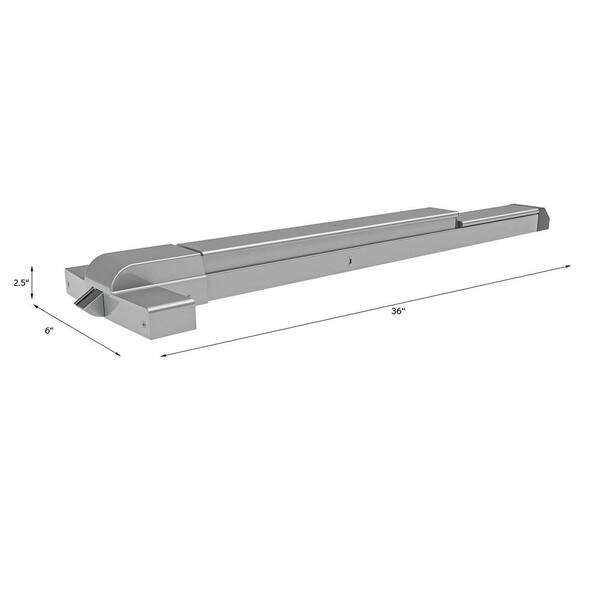

Product Height (in.) 2
Projection (in.) 2.5
Product Depth (in.) 2.5
Product Width (in.) 36
Manufacturer Warranty 10 Year Warranty

Description

Product code: 36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device
