Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit Mopar/Dana 140-11386-D
Buy Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit Mopar/Dana 140-11386-D, Model WIL140-11386-D online. Brakes and Drivetrain,Brakes
$1088.11
SAVE 50%-80% OFF
$326.43
$0 today, followed by 3 monthly payments of $3, interest free. Read More

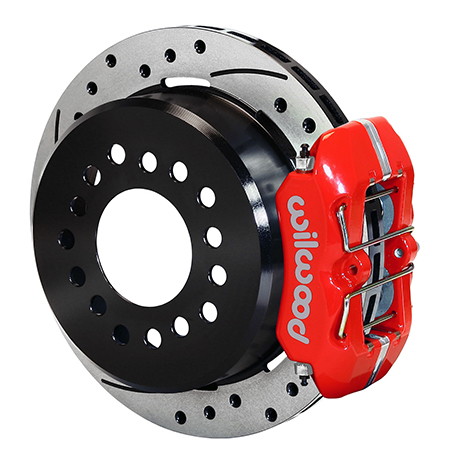

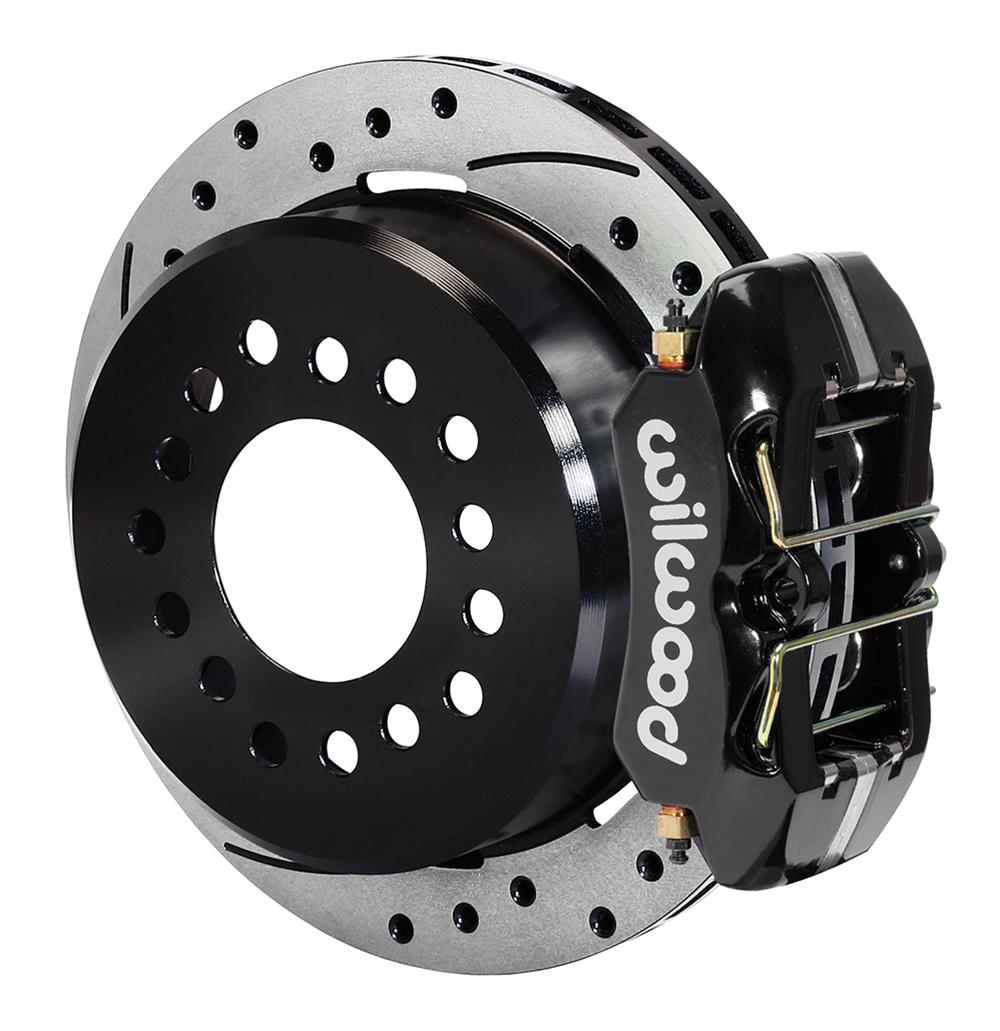

Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit Mopar/Dana 140-11386-D
Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile 4-piston calipers, 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
This is the solution for enthusiasts that require a rear disc brake kit with extra clearance for 14" to 15" wheels and a parking brake. Kits feature forged billet Dynapro 4-piston calipers with a special, low profile design. Each kit is sold complete with black anodized calipers, 11.00" diameter vented and drilled rotors, brake hats, caliper brackets, brake pads and necessary hardware.
- Wilwood Rear Brake Kit Dynapro Mopar/Dana w/Parking Brake
- Brake System
- Dynapro Low-Profile
- Rear
- 4 Piston Caliper
- 11.000 in Drilled / Slotted Iron Rotor
- Parking Brake / Offset Hat
- Aluminum, Black
- Mopar / Dana
- Kit
- MPN: 140-11386-D
| Kit Summary | |
|---|---|
| Rear End Axle: | Mopar/Dana |
| Axle Offset: | 2.50 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11.00 |
| Minimum Wheel Diameter Required*: | 14 |
| *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. The wheel clearance diagram can be found in the photo gallery. | |
Specifications
| Brand | Wilwood |
| Part Number | 140-11386-D |
| Product Line | Dynapro Low-Profile |
| Front/Rear | Rear |
| Inboard/Outboard | Outboard |
| Axle Offset | 2.50 in |
| Rotor/Hat Construction | 1 Piece |
| Rotor Hat Offset | 1.91 in |
| Rotor Included | Yes |
| Rotor Diameter | 11 in |
| Rotor Thickness | 0.81 in |
| Drilled Rotor | Yes |
| Slotted Rotor | Yes |
| Vented/Solid Rotor | Vented |
| Rotor Material | Iron |
| Rotor Color | Black |
| Rotor Finish | Paint |
| Caliper Included | Yes |
| Caliper Piston Quantity | 4 |
| Caliper Material | Aluminum |
| Caliper Color | Black |
| Caliper Finish | Anodized |
| Brake Caliper Brackets Included | Yes |
| Brake Caliper Bracket Material | Aluminum |
| Brake Caliper Bracket Color | Black |
| Brake Caliper Bracket Finish | Paint |
| Brake Pads Included | Yes |
| Brake Pad Compound | BP-10 |
| Wheel Studs Included | No |
| Parking Brake | Yes |
| Parking Brake Style | Internal Drum |
| Parking Break Cable | No |
| Brake Hoses Included | No |
| Hardware Included | Yes |
| Minimum Wheel Diameter | 14 in |
| Wheel Bolt Pattern | 5 x 4.5 in | 5 x 4.75 in | 5 x 5 in |
| Quantity | Kit |
| Notes | Requires use of Mopar Snap Ring Style Green Bearing (MO400) |
Fitment
Brake Kit: Forged Dynapro Low-Profile Rear Parking Brake Kit
Rear End: Mopar/Dana - Rear Kit
Axle Offset: 2.50
Fits:
| Chrysler 300 1965 Base |
| Chrysler 300 1966-1971 Base (Disc Brake) |
| Chrysler 300 1966-1971 Base (Drum Brake) |
| Chrysler Cordoba 1975-1983 All |
| Chrysler Fifth Avenue 1983-1989 All |
| Chrysler Imperial 1974-1975 All |
| Chrysler Imperial 1981-1983 All |
| Chrysler Lebaron 1977-1981 All |
| Chrysler New Yorker 1974-1978 All |
| Chrysler New Yorker 1979-1982 All |
| Chrysler New Yorker 1965 Base |
| Chrysler New Yorker 1966-1972 Base (Disc Brake) |
| Chrysler New Yorker 1966-1972 Base (Drum Brake) |
| Chrysler New Yorker 1972 Brougham (Disc Brake) |
| Chrysler New Yorker 1972 Brougham (Drum Brake) |
| Chrysler Newport 1974-1978 All |
| Chrysler Newport 1979-1981 All |
| Chrysler Newport 1965 Base |
| Chrysler Newport 1966-1971 Base (Disc Brake) |
| Chrysler Newport 1966-1971 Base (Drum Brake) |
| Chrysler Newport 1967-1972 Custom (Disc Brake) |
| Chrysler Newport 1967-1972 Custom (Drum Brake) |
| Chrysler Newport 1971-1972 Royal (Disc Brake) |
| Chrysler Newport 1971-1972 Royal (Drum Brake) |
| Chrysler Town & Country 1974-1978 All |
| Chrysler Town & Country 1965 Base |
| Chrysler Town & Country 1966-1972 Base (Disc Brake) |
| Chrysler Town & Country 1966-1972 Base (Drum Brake) |
| Dodge 330 1963-1964 All |
| Dodge 440 1963-1964 All |
| Dodge A-Body 1965-1972 10" Inch Drum Brake Spindle |
| Dodge A-Body 1961-1972 9" Inch Drum Brake Spindle |
| Dodge A-Body 1973-1976 All |
| Dodge A-Body 1965-1972 Disc Brake Spindle |
| Dodge Aspen 1976-1980 All |
| Dodge B-Body 1962-1964 All |
| Dodge B-Body 1973-1979 All |
| Dodge B-Body 1966-1968 Disc Brake Spindle |
| Dodge B-Body 1970-1972 Disc Brake Spindle |
| Dodge B-Body 1969 Disc Brake Spindle, Early |
| Dodge B-Body 1969 Disc Brake Spindle, Late |
| Dodge B-Body 1970-1972 Drum Brake Front |
| Dodge B-Body 1965-1969 Drum Brake Spindle |
| Dodge Challenger 1973-1974 All |
| Dodge Challenger 1970-1972 Disc Brake Spindle |
| Dodge Challenger 1970-1972 Drum Brake Front |
| Dodge Charger 1973-1978 All |
| Dodge Charger 1975 All from 5/75 |
| Dodge Charger 1975 All to 5/75 |
| Dodge Charger 1966-1968 Disc Brake Spindle |
| Dodge Charger 1970-1972 Disc Brake Spindle |
| Dodge Charger 1969 Disc Brake Spindle, Early |
| Dodge Charger 1969 Disc Brake Spindle, Late |
| Dodge Charger 1970-1972 Drum Brake Front |
| Dodge Charger 1966-1969 Drum Brake Spindle |
| Dodge Coronet 1973-1976 All |
| Dodge Coronet 1966-1968 Disc Brake Spindle |
| Dodge Coronet 1970-1972 Disc Brake Spindle |
| Dodge Coronet 1969 Disc Brake Spindle, Early |
| Dodge Coronet 1969 Disc Brake Spindle, Late |
| Dodge Coronet 1970-1972 Drum Brake Front |
| Dodge Coronet 1965-1969 Drum Brake Spindle |
| Dodge Coronet Super Bee 1968 Disc Brake Spindle |
| Dodge Coronet Super Bee 1970-1971 Disc Brake Spindle |
| Dodge Coronet Super Bee 1969 Disc Brake Spindle, Early |
| Dodge Coronet Super Bee 1969 Disc Brake Spindle, Late |
| Dodge Coronet Super Bee 1970-1971 Drum Brake Front |
| Dodge Coronet Super Bee 1968-1969 Drum Brake Spindle |
| Dodge Custom 1965 Base |
| Dodge Dart 1965-1972 10" Inch Drum Brake Spindle |
| Dodge Dart 1963-1972 9" Inch Drum Brake Spindle |
| Dodge Dart 1965-1972 Disc Brake Spindle |
| Dodge Dart 1973-1976 Disc Brake Spindle |
| Dodge Dart 1973-1976 Drum Brake Spindle |
| Dodge Dart Demon 1971-1972 10" Inch Drum Brake Spindle |
| Dodge Dart Demon 1971-1972 9" Inch Drum Brake Spindle |
| Dodge Dart Demon 1973-1976 All |
| Dodge Dart Demon 1971-1972 Disc Brake Spindle |
| Dodge Diplomat 1977-1989 All |
| Dodge E-Body 1973-1974 All |
| Dodge E-Body 1970-1972 Disc Brake Spindle |
| Dodge E-Body 1970-1972 Drum Brake Front |
| Dodge F-Body 1976-1980 All |
| Dodge J-Body 1980-1983 All |
| Dodge Lancer 1961-1962 9" Inch Drum Brake Spindle |
| Dodge Magnum 1978-1979 All |
| Dodge Mirada 1980-1983 All |
| Dodge Monaco 1967-1968 500 (Disc Brake) |
| Dodge Monaco 1967-1968 500 (Drum Brake) |
| Dodge Monaco 1974 All |
| Dodge Monaco 1978 All |
| Dodge Monaco 1977 All Except Royal |
| Dodge Monaco 1975-1976 All, Including Royal |
| Dodge Monaco 1965 Base |
| Dodge Monaco 1966-1972 Base (Disc Brake) |
| Dodge Monaco 1966-1972 Base (Drum Brake) |
| Dodge Monaco 1977 Monaco Royal only |
| Dodge Polara 1968-1969 500 (Disc Brake) |
| Dodge Polara 1968-1969 500 (Drum Brake) |
| Dodge Polara 1962-1964 All |
| Dodge Polara 1965 Base |
| Dodge Polara 1966-1972 Base (Disc Brake) |
| Dodge Polara 1966-1972 Base (Drum Brake) |
| Dodge Polara 1971 Brougham (Disc Brake) |
| Dodge Polara 1971 Brougham (Drum Brake) |
| Dodge Polara 1970-1972 Custom (Disc Brake) |
| Dodge Polara 1970-1972 Custom (Drum Brake) |
| Dodge Polara 1970 Special (Disc Brake) |
| Dodge Polara 1970 Special (Drum Brake) |
| Dodge R/T 1976-1978 All |
| Dodge St. Regis 1979-1981 All |
| Magnum Force 1.50 " Drop Spindle 9999 Magnum Force 1.50" Drop Spindle (74-78 Mustang II) |
| Magnum Force 2.00 " Drop Spindle 9999 Magnum Force 2.0" Drop Spindle (73-80 Mopar) |
| Magnum Force 3.50 " Drop Spindle 9999 Magnum Force 3.50" Drop Spindle (74-78 Mustang II) |
| Plymouth A-Body 1965-1972 10" Inch Drum Brake Spindle |
| Plymouth A-Body 1960-1972 9" Inch Drum Brake Spindle |
| Plymouth A-Body 1973-1976 All |
| Plymouth A-Body 1965-1972 Disc Brake Spindle |
| Plymouth B-Body 1962-1964 All |
| Plymouth B-Body 1973-1979 All |
| Plymouth B-Body 1966-1968 Disc Brake Spindle |
| Plymouth B-Body 1970-1972 Disc Brake Spindle |
| Plymouth B-Body 1969 Disc Brake Spindle, Early |
| Plymouth B-Body 1969 Disc Brake Spindle, Late |
| Plymouth B-Body 1970-1972 Drum Brake Front |
| Plymouth B-Body 1965-1969 Drum Brake Spindle |
| Plymouth Barracuda 1965-1969 10" Inch Drum Brake Spindle |
| Plymouth Barracuda 1964-1969 9" Inch Drum Brake Spindle |
| Plymouth Barracuda 1973-1974 All |
| Plymouth Barracuda 1965-1969 Disc Brake Spindle |
| Plymouth Barracuda 1970-1972 Disc Brake Spindle |
| Plymouth Barracuda 1970-1972 Drum Brake Front |
| Plymouth Belvedere 1962-1964 All |
| Plymouth Belvedere 1966-1968 Disc Brake Spindle |
| Plymouth Belvedere 1970 Disc Brake Spindle |
| Plymouth Belvedere 1969 Disc Brake Spindle, Early |
| Plymouth Belvedere 1969 Disc Brake Spindle, Late |
| Plymouth Belvedere 1970 Drum Brake Front |
| Plymouth Belvedere 1965-1969 Drum Brake Spindle |
| Plymouth Caravelle 1982-1984 All |
| Plymouth Caravelle 1985 All RWD only |
| Plymouth Cuda 1973-1974 All |
| Plymouth Cuda 1970-1972 Disc Brake Spindle |
| Plymouth Cuda 1970-1972 Drum Brake Front |
| Plymouth Duster 1970-1972 10" Inch Drum Brake Spindle |
| Plymouth Duster 1970-1972 9" Inch Drum Brake Spindle |
| Plymouth Duster 1973-1976 All |
| Plymouth Duster 1970-1972 Disc Brake Spindle |
| Plymouth E-Body 1973-1974 All |
| Plymouth E-Body 1970-1972 Disc Brake Spindle |
| Plymouth E-Body 1970-1972 Drum Brake Front |
| Plymouth F-Body 1976-1980 All |
| Plymouth Fury 1962-1964 All |
| Plymouth Fury 1974 All |
| Plymouth Fury 1978 All |
| Plymouth Fury 1965 Base |
| Plymouth Fury 1966-1967 Base (Disc Brake) |
| Plymouth Fury 1966-1967 Base (Drum Brake) |
| Plymouth Fury 1971 Custom (Disc Brake) |
| Plymouth Fury 1971 Custom (Drum Brake) |
| Plymouth Fury 1968-1972 Custom Suburban (Disc Brake) |
| Plymouth Fury 1968-1972 Custom Suburban (Drum Brake) |
| Plymouth Fury 1975-1977 Except Gran Fury |
| Plymouth Fury 1970-1972 Gran Coupe (Disc Brake) |
| Plymouth Fury 1970-1972 Gran Coupe (Drum Brake) |
| Plymouth Fury 1972 Gran Sedan (Disc Brake) |
| Plymouth Fury 1972 Gran Sedan (Drum Brake) |
| Plymouth Fury 1970 GT (Disc Brake) |
| Plymouth Fury 1970 GT (Drum Brake) |
| Plymouth Fury 1970 S-23 (Disc Brake) |
| Plymouth Fury 1970 S-23 (Drum Brake) |
| Plymouth Fury 1965 Sport |
| Plymouth Fury 1966-1971 Sport (Disc Brake) |
| Plymouth Fury 1966-1971 Sport (Drum Brake) |
| Plymouth Fury 1970-1971 Sport GT (Disc Brake) |
| Plymouth Fury 1970-1971 Sport GT (Drum Brake) |
| Plymouth Fury 1968-1972 Sport Suburban (Disc Brake) |
| Plymouth Fury 1968-1972 Sport Suburban (Drum Brake) |
| Plymouth Fury 1968-1972 Suburban (Disc Brake) |
| Plymouth Fury 1968-1972 Suburban (Drum Brake) |
| Plymouth Fury 1966-1969 VIP (Disc Brake) |
| Plymouth Fury 1966-1969 VIP (Drum Brake) |
| Plymouth Fury I 1968-1972 Base (Disc Brake) |
| Plymouth Fury I 1968-1972 Base (Drum Brake) |
| Plymouth Fury I 1968-1972 Suburban (Disc Brake) |
| Plymouth Fury I 1968-1972 Suburban (Drum Brake) |
