Buy Wilwood Billet Dynalite Single Calipers 1.75in, Model WIL120-10188 online. Brakes and Drivetrain,Brakes
$128.26
SAVE 50%-80% OFF
$38.48
$0 today, followed by 3 monthly payments of $3, interest free. Read More

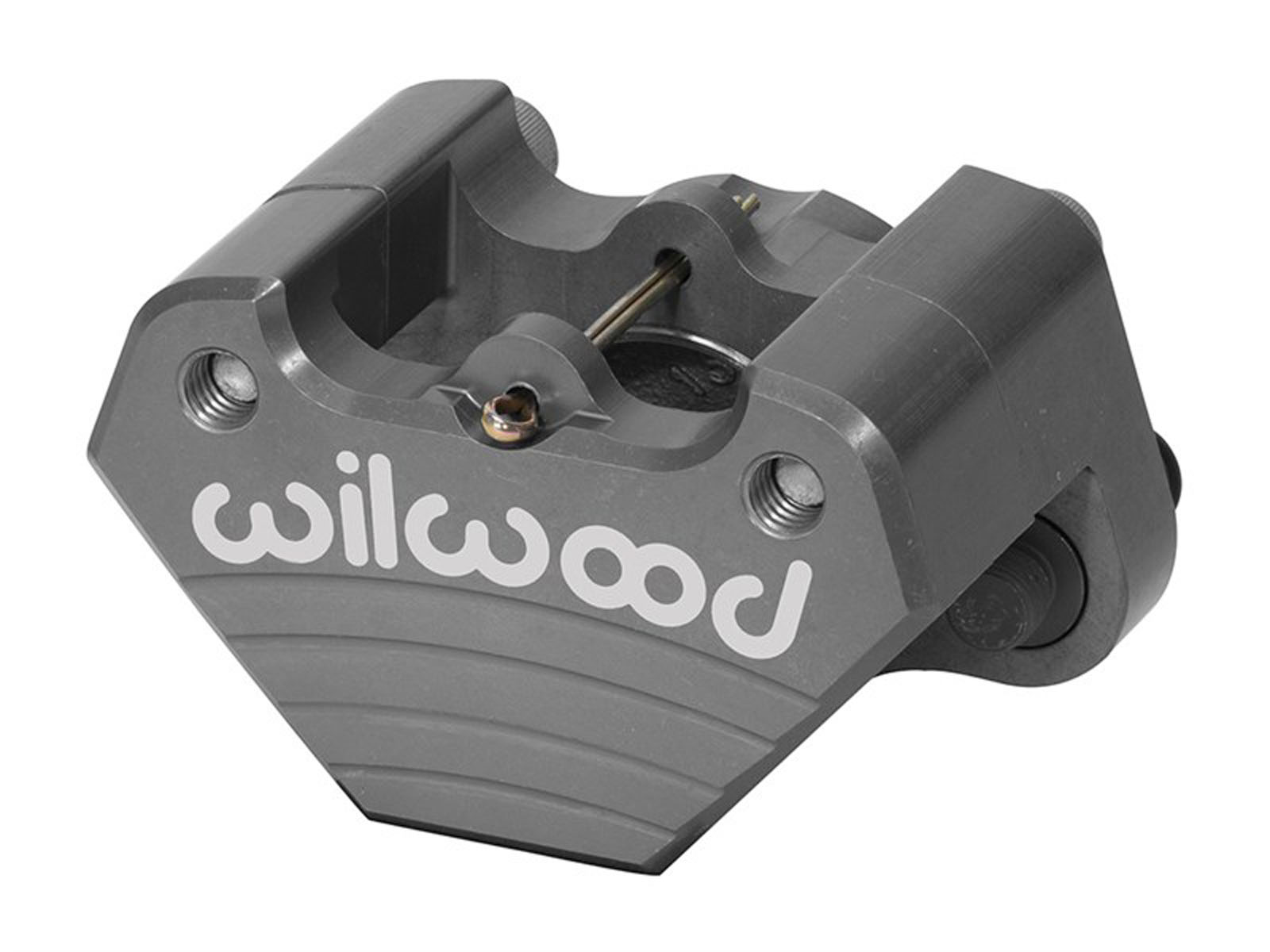

Billet Dynalite Single Calipers
Black anodized aluminum single piston caliper is ideal for open wheel racing. With 3.25" lug spacing, it weighs just 1.4 lbs. and secures a .58" thick, 1.1" cubic inch brake pad with Quick-E-Clip pad retainers. Internal fluid passages and multiple bleed fittings permit right or left, front or rear mounting. Will fit .250" to .380" thick rotors with diameters from 6.00" to 13.00". High-temperature square piston seals control retraction and stainless steel deep-cup pistons reduce heat transfer from pad to brake fluid. Calipers accept 1/8"-27 NPT inlet fittings and use 6812 type pads.
Brand | Wilwood | |
Part Number |
| |
Product Line | Dynapro Single LW | |
Hawk Pad Shape | HB104 | |
Wilwood Pad Shape | 6812 | |
Performance Friction Pad Shape | 7757/12 | |
Piston Quantity | 2 | |
Piston A Diameter | 1.750 in | |
Mounting Style | Lug Mount | |
Mounting Distance | 3.250 in | |
Intended Rotor Diameter Minimum | 6 in | |
Intended Rotor Diameter Maximum | 13 in | |
Intended Rotor Thickness Minimum | 0.250 in | |
Intended Rotor Thickness Maximum | 0.380 in | |
Logo Design | Wilwood | |
Logo Color | White | |
Front / Rear | Front | Rear | |
Driver / Passenger Side | Driver | Passenger | |
Bleeder Included | Yes | |
Bleeder Quantity | 4 | |
Material | Aluminum | |
Color | Gray | |
Finish | Anodized | |
Quantity | Each |
