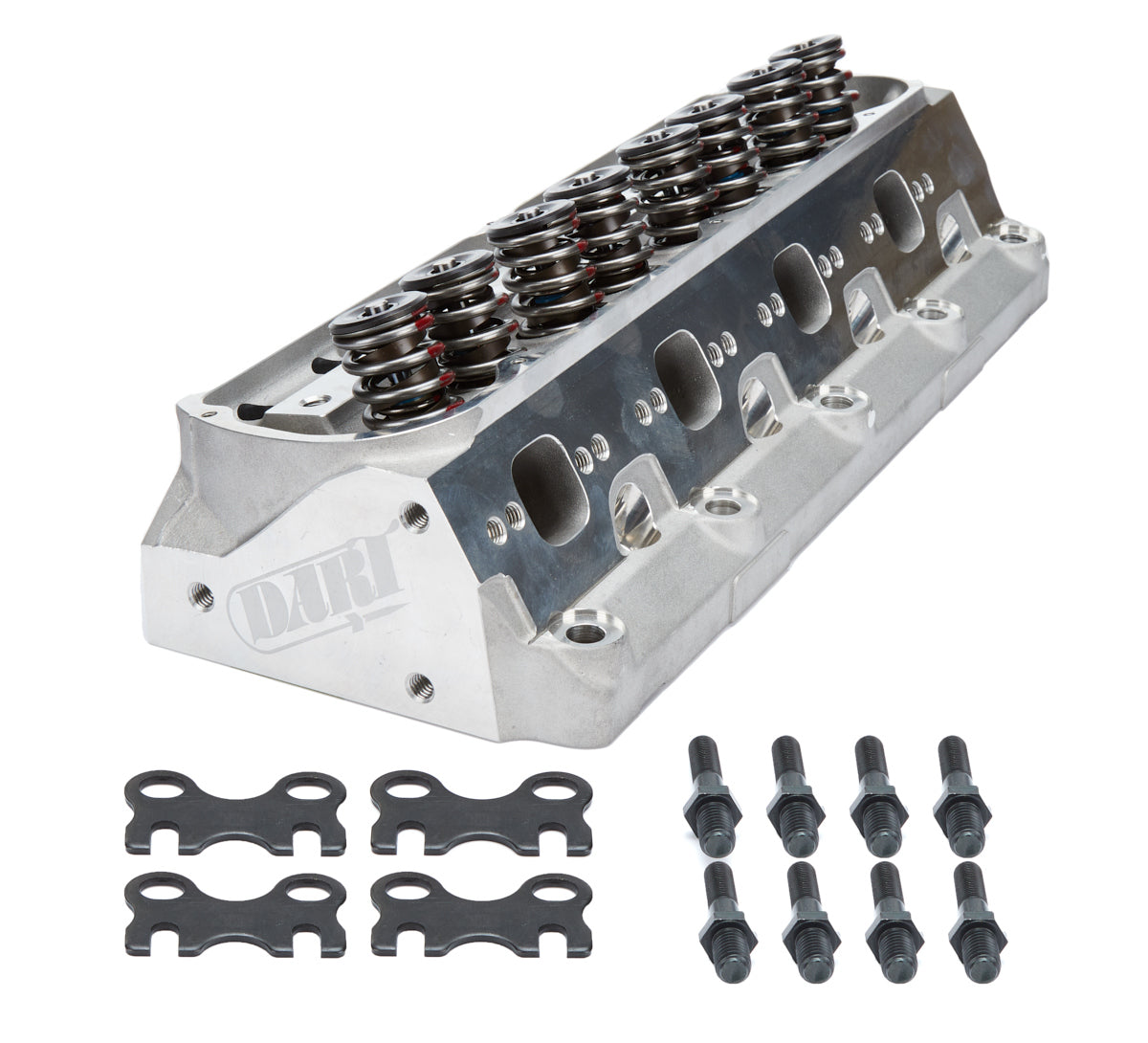

Dart SBF SHP Cylinder Head 128225 - 205cc/58cc  - Assembled View larger
     Dart SBF SHP Cylinder Head 128225 - 205cc/58cc  - Assembled
    Dart SBF SHP Cylinder Head 128225 - 205cc/58cc  - Assembled

Dart SBF SHP Cylinder Head 128225 - 205cc/58cc - Assembled

Buy Dart SBF SHP Cylinder Head 128225 - 205cc/58cc - Assembled, Model DRT128225 online. Engines and Components,Engines And Components

$599.99

SAVE 50%-80% OFF

$180.00

- +

Add to wishlist


Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More


Dart SBF SHP Cylinder Head 128225 - 205cc/58cc - Assembled

Assembled, SHP 205, As Cast, 1.437" Dual Springs, Angle Plug, Hyd. Roller Camshaft, 0.650" Max Lift

  • SBF SHP Cylinder Head 205cc/58cc
  • Assembled
  • Sold as each
  • MPN: 128225

Dart SHP Special High Performance cylinder heads provide an affordable option for those who desire the weight savings of aluminum heads for a performance street engine. These units are manufactured from A356-T6 aluminum and are designed to work with most off-the-shelf components.

Assembled heads include Dart 7/16" rocker studs, 1.250" or 1.437" valve springs, Viton valve seals, Dart 5/16" adjustable guide plates, 10° machined bead lock valve locks, hardened spring cups, and one-piece stainless steel valves.

Specifications

Brand Dart
Part Number 128225
Product Line
SHP
Assembled/Bare
Assembled
Chamber Volume
58 cc
Plug Angle
Angle
Intake Runner Volume
205 cc
Intake Port Shape
Rectangle
Intake Port Location
Stock
Intake Port Height
2.133 in
Intake Port Width
1.277 in
Exhaust Port Shape
Square
Exhaust Port Location
Stock
Exhaust Port Height
1.396 in
Exhaust Port Width
1.408 in
Intake Valve Size
2.050 in
Intake Valve Included
Yes
Intake Valve Material
Stainless
Intake Valve Length
4.890 in
Exhaust Valve Size
1.600 in
Exhaust Valve Included
Yes
Exhaust Valve Material
Stainless
Exhaust Valve Length
4.890 in
Valve Spring Included
Yes
Valve Spring Diameter
1.437 in
Valve Spring Number
Dual
Valve Spring Damper
Yes
Valve Spring Retainers Included
Yes
Valve Spring Retainer Material
Steel
Valve Locks Included
Yes
Valve Lock Material
Steel
Valve Seal Included
Yes
Valve Seal Style
Positive Stop
Rocker Studs Included
Yes
Rocker Stud Size
3/8-24 in
Pushrod Guide Plate Included
Yes
Guide Plate Pushrod Size
5/16 in
Valve Guide Included
Yes
Valve Guide Material
Bronze
Perimeter Mount Valve Cover
Yes
Valve Seat Included
Yes
Intake Valve Seat Material
Powdered Metal
Exhaust Valve Seat Material
Powdered Metal
Valve Seat Finish
Machined
Combustion Chamber Finish
As Cast
Intake Runner Finish
As Cast
Exhaust Runner Finish
As Cast
Accessory Bolt Holes
Drilled and Tapped
Material
Aluminum
Logo
Dart
Color
Natural
Finish
Natural
Quantity
Each

Description
