Mortise Lock, 3-11/16 in. Hole Centers, Vertical Keyway Position, Steel Construction

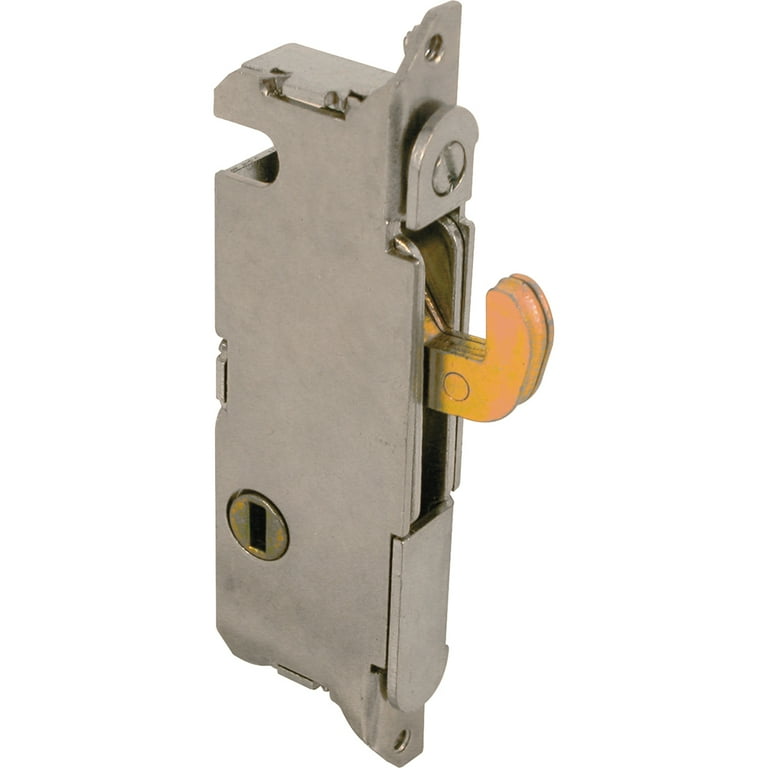

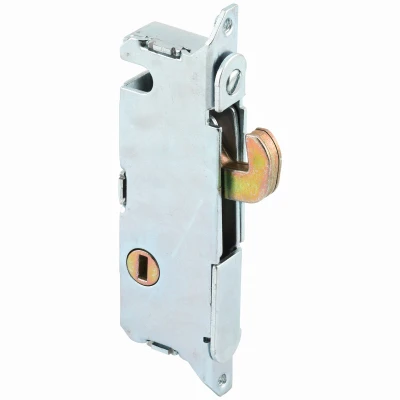

This is a mortise lock that has an adjustable, spring-loaded hook latch projection for surface-mounted sliding patio doors constructed of wood, aluminum and vinyl with handle sets with vertical keyway position when in the locked position. It also fits doors using W&F manufactured handles. The mounting hole centers of this lock measures 3-11/16 in. on center, and the rear housing corners are square. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45-degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted.
  • Used to replace damaged or missing mortise locks in patio sliding doors. Used by W&F and other manufacturers

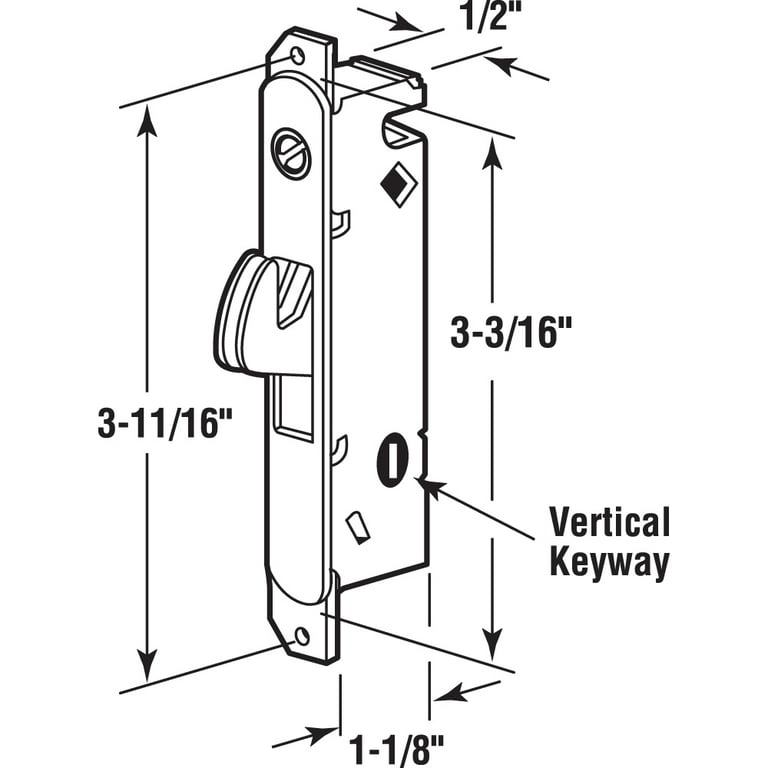

  • 1/2 in. wide body, 3-3/16 in. tall faceplate, 1-1/8 in. depth, 3-11/16 in. mounting hole centers

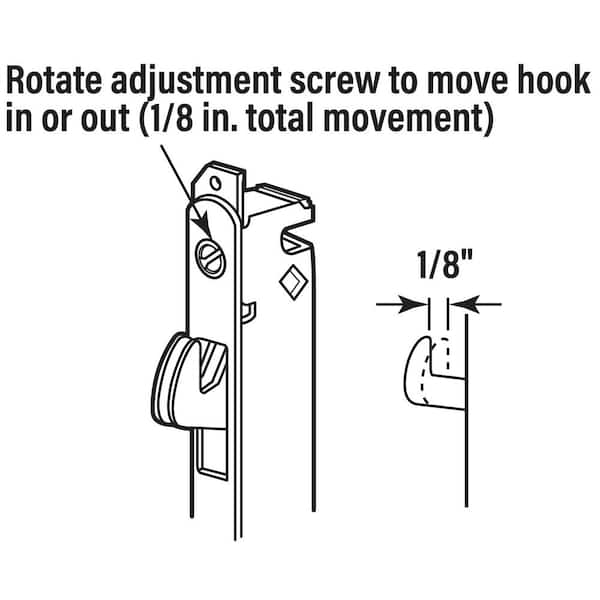

  • Round end faceplate with spring-loaded, adjustable hook latch projection
  • Installation of this lock should be mounted out of children’s reach to help prevent them from opening a door themselves to enter or exit into dangerous areas
  • Used on a variety of swing-in, hinged door types and can be mounted on, or beside the door casing
  • This mortise lock works on older systems that use levers (Prime-Line parts E 2033, E 2034, E 2035, E 2037, E 2038 , and E 2066)
  • For further dimensional information, please see the line drawing


Features
Item Weight 0.27
Product Weight (lb.) .29
Included Installation Instructions
Door Locks & Knobs Product Type Mortise Locks
Material Steel
Security/ANSI Grade N/A
Interior/Exterior Interior
Commercial/Residential Residential
Door Lock Style Modern
Finish Stainless Steel
Returnable 180-Day
Features No Additional Features
Hardware Finish Family Silver
Product Height (in.) 3.6875
Product Depth (in.) 1.125 in
Chain/bar length (in.) 0
Product Width (in.) .5
Manufacturer Warranty Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Certifications and Listings No Certifications or Listings
