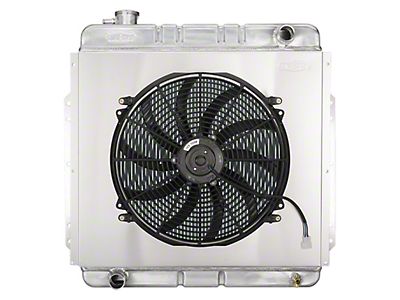

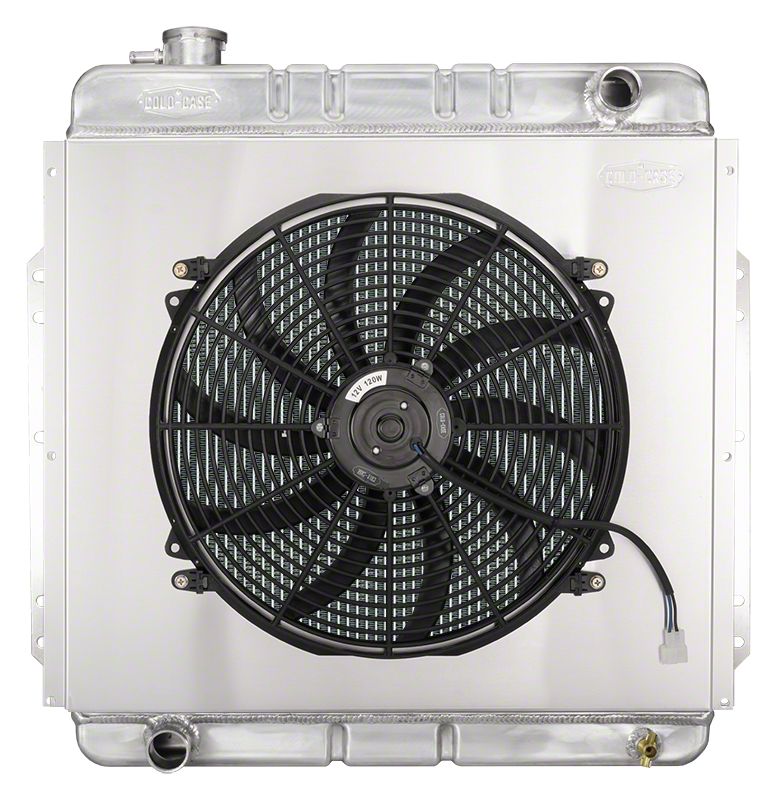

Cold Case Radiators 53-56 Ford F100 Radiator and 16in Fan Kit View larger
     Cold Case Radiators 53-56 Ford F100 Radiator and 16in Fan Kit

Cold Case Radiators 53-56 Ford F100 Radiator and 16in Fan Kit

Buy Cold Case Radiators 53-56 Ford F100 Radiator and 16in Fan Kit, Model CCRFOT576AK online. Heating and Cooling,Heating And Cooling

$606.95

SAVE 50%-80% OFF

$182.09

- +

Add to wishlist


Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More


Cold Case Radiators 53-56 Ford F100 Radiator and 16in Fan Kit

1953-1956 Ford F-100 Truck Aluminum Performance Radiator. For trucks with inline 6 or later V8. Will Not Work For Flathead. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • 2 rows of 1.25 inch tubes
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For auto/manual trans
  • Direct fitment for 53-56 F100
  • Radiator and Fan - 26.2 in W x 25.5 in H x 3 in D - Center Inlet - Driver Side Outlet - Aluminum - Natural - Ford Inline-6 - Ford Fullsize Truck 1953-56
  • MPN: FOT576AK (old part number RPE576A)

Radiator Specs:

  • Core Height 20.25 inch
  • Core Width 22.75 inch
  • Overall Height 25.5
  • Overall Width 26.2 inch
  • Overall Thickness 3 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.77 inch

Specifications

Brand Cold Case Radiators
Part Number FOT576AK
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
26-13/64 in
Overall Height
25-1/2 in
Overall Depth
3 in
Core Width
22-3/4 in
Core Height
20-1/4 in
Inlet Side
Center
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Driver Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Fan Included
Yes
Fan Quantity
1
Fan Diameter
16 in
Fan CFM
2,500 cfm
Blade Material
Plastic
Blade Color
Black
Shroud Material
Aluminum
Shroud Color
Natural
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Kit

Fitment

Vehicle Type: Truck/SUV
Transmission Type: Automatic, Manual
Make: Ford
Cylinders: 8 Cylinder

Fitment:
1953 - 1956 Ford F-100
1953 - 1956 Ford Truck

Fitment Notes:
53-56 Ford Truck 16 Inch

Description

Product code: Cold Case Radiators 53-56 Ford F100 Radiator and 16in Fan Kit
