Buy Brand Allstar Performance Allstar Engine Oil Pressure Primer Tank, Model ALL10535 online. Engines and Components,Engines And Components
$189.99
SAVE 50%-80% OFF
$57.00
$0 today, followed by 3 monthly payments of $3, interest free. Read More

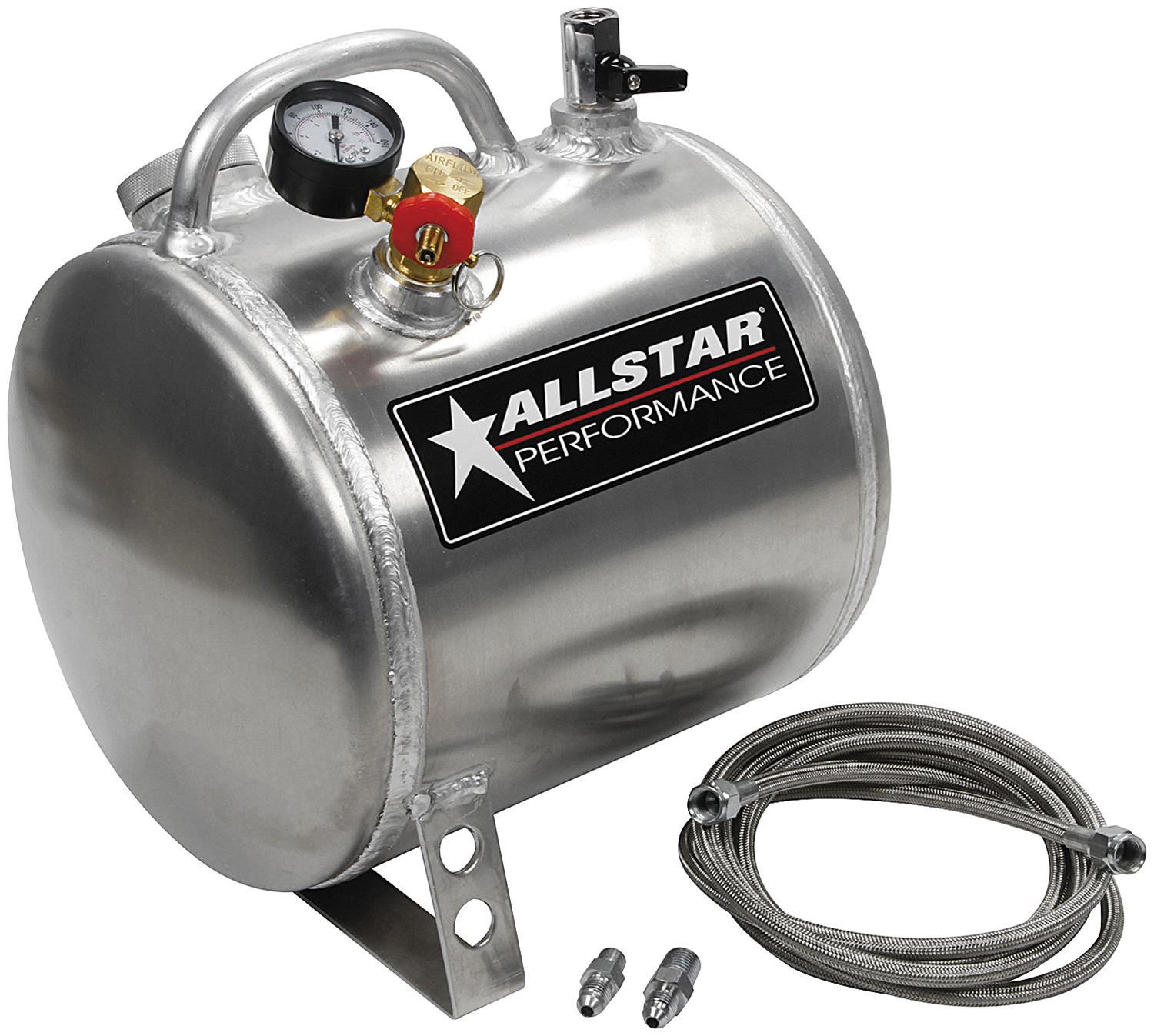

The Allstar Engine Oil Pressure Primer Tank supplies initial oil to the oil pump in engines equipped with a crank driven oil pump. Fill primer tank with engine oil then apply compressed air to force the fluid throughout the engine via the oil pressure sender/switch port to pre-lube the entire engine including the oil pump. Tank features include a fill cap with safety pressure release slot (sealed by o-ring), an easy to read pressure gauge and a quarter turn on/off supply valve. The oil supply line is a durable 90" long steel braided hose with -4AN ends and includes a fitting with male 1/8"-27NPT threads. Adapter fittings sold separately.
Brand | Allstar Performance |
Part Number | ALL10535 |
Intended Application | Oil Pump Primer |
Length | 11 in |
Diameter | 9 in |
Capacity | 4 qt |
Cap Included | Yes |
Outlet Quantity | 1 |
Outlet Size | 1/8 in NPT |
Outlet Style | Female |
Shutoff Valve | Yes |
Fittings Included | Yes |
Fitting 1 Quantity | 1 |
Fitting 1 Side 1 Size | 1/8 in NPT |
Fitting 1 Side 1 Style | Male |
Fitting 1 Side 2 Size | 4 AN |
Fitting 1 Side 2 Style | Male |
Fitting 2 Quantity | 1 |
Fitting 2 Side 1 Size | 1/8 in NPT |
Fitting 2 Side 1 Style | Female |
Fitting 2 Side 2 Size | 4 AN |
Fitting 2 Side 2 Style | Male |
Hose Included | Yes |
Hose Size | 4 AN |
Hose Length | 90 in |
Pressure Gauge | Yes |
Material | Aluminum |
Color | Natural |
Finish | Natural |
Quantity | Kit |
