Cold Case Radiators 67-69 Camaro BB / Firebird AT Radiator and 16in Fan View larger
    Cold Case Radiators 67-69 Camaro BB / Firebird AT Radiator and 16in Fan

Cold Case Radiators 67-69 Camaro BB / Firebird AT Radiator and 16in Fan

Buy Cold Case Radiators 67-69 Camaro BB / Firebird AT Radiator and 16in Fan, Model CCRCHC11AK online. Heating and Cooling,Heating And Cooling

$604.95

SAVE 50%-80% OFF

$181.49

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

Cold Case Radiators 67-69 Camaro BB / Firebird AT Radiator and 16in Fan

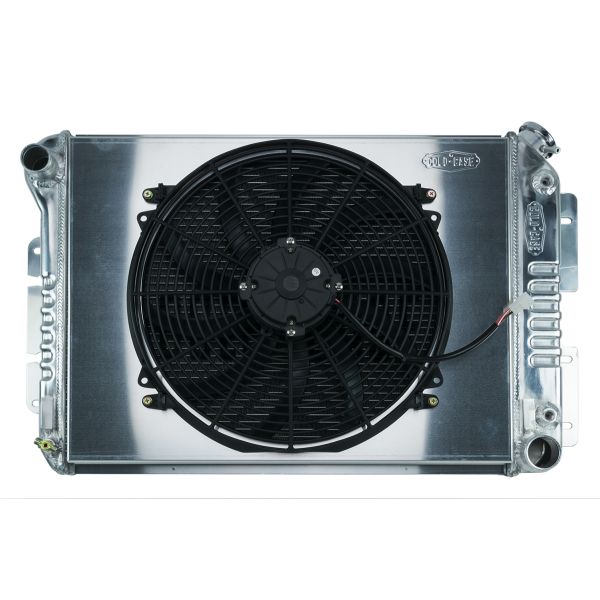

67-69 Camaro BB / Firebird Auto Transmission Aluminum Radiator and 16 Inch Fan Kit (automatic transmission).

These radiators are original appearing and have the correct stamping. Once painted, you will be hard pressed to find a difference over an original versus a COLD-CASE.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

Fits:

  • 67-69 Firebird
  • 67-69 Camaro
  • 68-71 Nova w/ bracket mount
  • Automatic Transmission

Details:

  • 100 percent TIG welded
  • Fan Diameter 16 Inch
  • All Aluminum
  • Polished OE style tanks
  • (2) 1.25 inch Tubes
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For automatic transmission
  • Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
  • Radiator and Fan - 27.5 in W x 18.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - Big Block Chevy- GM F-Body 1967-68 - Kit

Radiator Specs

  • Core Height 16.85 inch
  • Core Width 23 inch
  • Overall Height 18.5 inch
  • Overall Width 27.5 inch
  • Overall Thickness 6 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.75 inch

Specifications

Brand Cold Case Radiators
Part Number CHC11AK
Old Part Number RFE11AL
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
27-1/2 in
Overall Height
18-1/2 in
Overall Depth
3 in
Core Width
23 in
Core Height
16-27/32 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Crossflow
Cap Included
No
Fan Included
Yes
Fan Quantity
1
Fan Diameter
16 in
Fan CFM
2,500 cfm
Blade Material
Plastic
Blade Color
Black
Shroud Material
Aluminum
Shroud Color
Natural
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Kit

Fitment

Vehicle Type: Car
Transmission Type: Automatic
Make: Chevrolet and Pontiac
Engine: Chevy Big Block
Cylinders: 8 Cylinder

Fitment:

  • 1967 - 1969 Pontiac Firebird 400
  • 1967 - 1969 Pontiac Firebird
  • 1967 - 1969 Chevrolet Camaro
  • 1967 - 1967 Pontiac Firebird HO
  • 1967 - 1969 Chevrolet Camaro RS
  • 1967 - 1969 Pontiac Firebird Sprint
  • 1967 - 1969 Chevrolet Camaro SS
  • 1967 - 1969 Chevrolet Camaro Z28
  • 1968 - 1969 Pontiac Firebird 350
  • 1969 - 1969 Pontiac Firebird 350 HO
  • 1969 - 1969 Pontiac Firebird Trans Am
  • 1967 - 1968 Pontiac Trans Am
  • 1968 - 1971 Chevrolet Nova

Fitment Notes: 67-69 Camaro BB / Firebird AT 16 Inch
