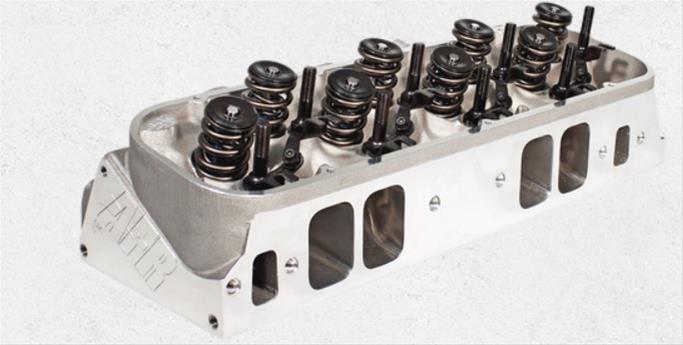

BBC 315cc Aluminum Cylinder Heads Magnum 121cc Assembled 2000
Buy Brand Air Flow Research BBC 315cc Aluminum Cylinder Heads Magnum 121cc Assembled 2000, Model AFR2000 online. Engines and Components,Engines And Components
$4703.00
SAVE 50%-80% OFF
$1410.90
$0 today, followed by 3 monthly payments of $3, interest free. Read More
BBC 315cc Aluminum Cylinder Heads Magnum 121cc Assembled 2000
Big Block Chevy Magnum Aluminum Cylinder Heads
Promising big horsepower, Magnum 24° heads are available with 305cc, 315cc, 325cc, 335cc, 345cc, 357cc, and 385cc intake runners. The 305cc, 315cc, and 325cc heads are recommended for 396-509 cu. in. street/strip engines; larger 345cc, 357cc, and 385cc are ideal for 509-632 cu. in. bracket or “Super” class use. The 335cc, 357cc, and 385cc heads listed have high flow, CNC-ported runners. All heads are sold in pairs, completely assembled with stainless valves, valve springs, retainers, locks, and seals.
- As Cast Assembled
Cylinder Head - Magnum Comp - Assembled - 2.250 / 1.880 in Valves - 315 cc Intake - 121 cc Chamber - 1.625 in Springs - Aluminum - Big Block Chevy - Sold as a Pair - Brand: Air Flow Research - Part Number: 2000
Specifications
| Brand | Air Flow Research |
| Part Number | 2000 |
| Product Line | Magnum Comp |
| Assembled/Bare | Assembled |
| Chamber Volume | 121 cc |
| Plug Angle | Angle |
| Intake Runner Volume | 315 cc |
| Exhaust Runner Volume | 135 cc |
| Intake Port Shape | Rectangle |
| Intake Port Location | Stock |
| Intake Port Height | 2.450 in |
| Intake Port Width | 1.755 in |
| Exhaust Port Shape | Round |
| Exhaust Port Location | Raised |
| Exhaust Port Raised Distance | 0.375 in |
| Exhaust Port Height | 1.780 in |
| Exhaust Port Width | 2.025 in |
| Intake Valve Size | 2.250 in |
| Intake Valve Included | Yes |
| Intake Valve Material | Stainless |
| Intake Valve Length | 5.500 in |
| Exhaust Valve Size | 1.880 in |
| Exhaust Valve Included | Yes |
| Exhaust Valve Material | Stainless |
| Exhaust Valve Length | 5.450 in |
| Valve Spring Included | Yes |
| Intended Camshaft Style | Solid Roller |
| Maximum Lift | 0.850 in |
| Maximum RPM | 7600 |
| Valve Spring Diameter | 1.625 in |
| Valve Spring Number | Dual |
| Valve Spring Damper | No |
| Valve Spring Retainers Included | Yes |
| Valve Spring Retainer Material | Chromoly |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly |
| Valve Lock Angle | 10 Degree |
| Valve Seal Included | Yes |
| Valve Seal Style | Positive Stop |
| Valve Seal Material | Viton |
| Rocker Studs Included | Yes |
| Rocker Stud Size | 7/16-20 in |
| Pushrod Guide Plate Included | Yes |
| Guide Plate Pushrod Size | 5/16 in |
| Valve Guide Included | Yes |
| Valve Guide Material | Bronze |
| Perimeter Mount Valve Cover | Yes |
| Valve Seat Included | Yes |
| Intake Valve Seat Material | Ductile Iron |
| Exhaust Valve Seat Material | Ductile Iron |
| Valve Seat Finish | Machined |
| Combustion Chamber Finish | CNC Machined |
| Intake Runner Finish | CNC Machined |
| Exhaust Runner Finish | CNC Machined |
| Intake Valve Angle | 24 Degree |
| Exhaust Valve Angle | 15 Degree |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Pair |
Description
Product code: BBC 315cc Aluminum Cylinder Heads Magnum 121cc Assembled 2000
