Home / Outlet/ Brands/ 21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide

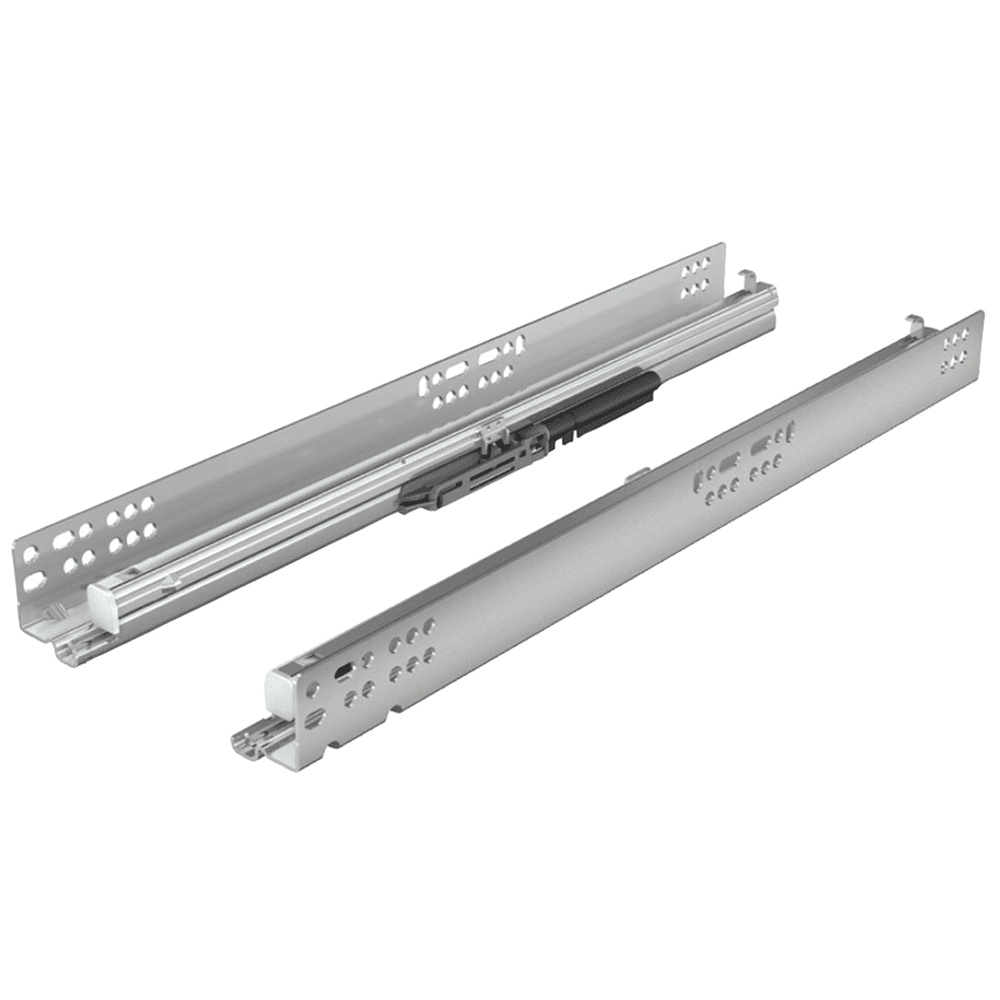

21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide View larger
    21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide
    21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide

21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide

Buy Brand In Stock Hardwarestore Delivery 21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide, Model 300539544 online. Drawer Slides,Drawer-Slides

$28.33

SAVE 50%-80% OFF

$14.17

Item Weight
45
Package Quantity
1
Slide Length (In.)
181521

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide

Noise levels in the kitchen increase when drawers are closed vigorously. The front slams against the unit. Drawer contents rattle. Contents get shuffled. Things clatter, nerves unravel. Drawers with Silent System eliminate this type of disturbance from the kitchen. They help to create a relaxed mood and a more efficient working environment. Silent System closes all drawers gently and softly - from lightly filled cutlery drawers to heavily loaded pan drawers. Silent System is completely invisible, completely effective and very impressive.
  • Slides have a silent system drawer dampening system that prevents drawers from slamming shut
  • Soft close closure is filled with air, no chance of leaking oil into your cabinets or furniture
  • Soft close closure is designed to close the same speed no matter the weight
  • German engineered and built to provide maximum quality and high durability
  • Self cleaning ball bearings assure smooth operation for a lifetime
  • No side to side motion prevents the drawer box from racking
  • 100 lbs. load capacity per pair
  • Can be mounted as face frame or frameless
  • Front fixing clips are required but not included please order separate
  • Hardware fasteners are not included
  • Required: if using for a 1/2 in. drawer box thickness order item number H.9140416 front drawer fixing clips
  • Required: if using for a 5/8 in. drawer box thickness order item number H.9140413 front drawer fixing clips
  • Optional: face frame rear attachment set item number H.9055093
  • Optional: mounting jig for drill the holes at the rear of the drawer
  • Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements
  • Meets or exceeds KCMA requirements
  • Zinc-plated steel slide with permanently lubricated synthetic ball bearing races, hardened steel balls

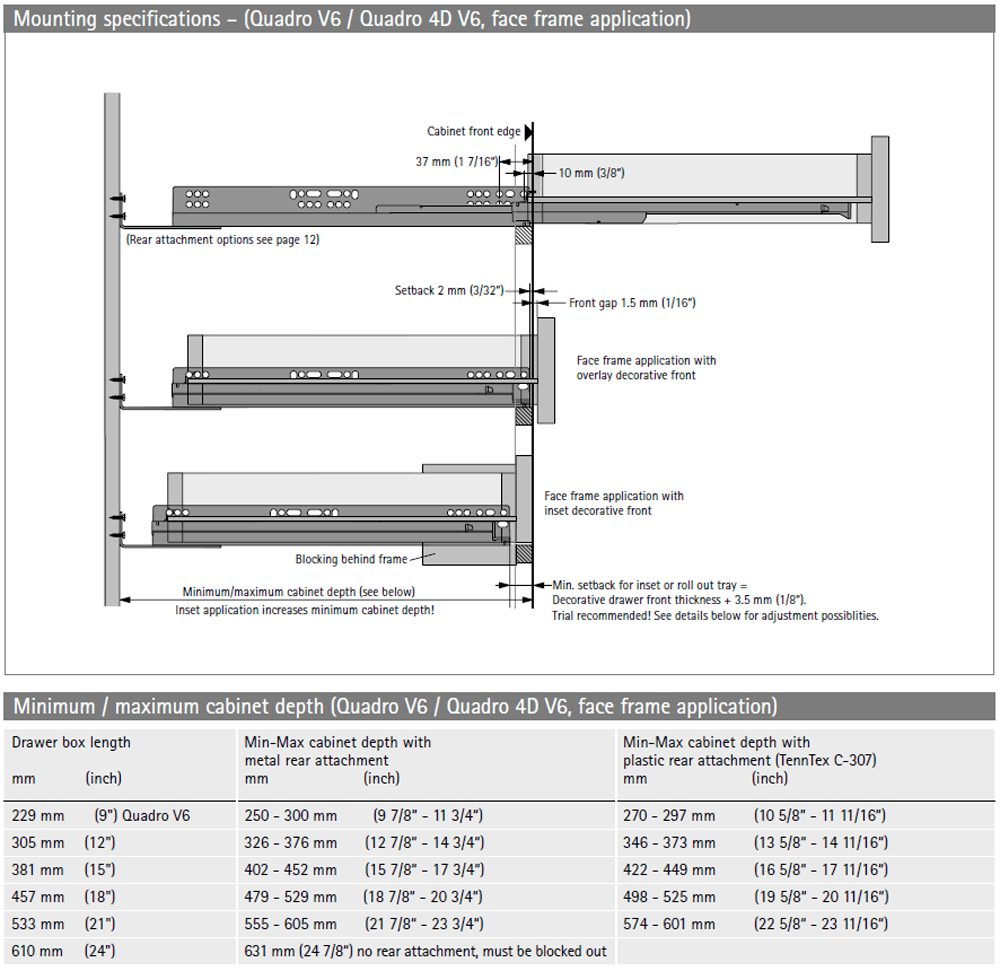

  • Refer to detail installation instruction and spec application for different methods of applications


Features
Item Weight 5
Slide System Full Extension
Mount Type Undermount
Material Steel
Package Quantity 1
Weight load per set (lb.) 100
Returnable 180-Day
Builders Hardware Product Type Drawer Slides
Features No Additional Features,Soft Close
Drawer Slide Type Ball Bearing
Finish Family Metallic
Maximum Expandable Length (in.) 21
Slide Length (In.) 21
Product Width (in.) 1.75
Product Height (in.) 2.5
Manufacturer Warranty Limited

Description

Product code: 21 in. Under Mount Soft Close Full Extension Quadro IW21 Silent System Slide
