Home / Outlet/ Brands/ Fuelab Fuel Pump Twin Screw EFI Electric In-Line 1250hp

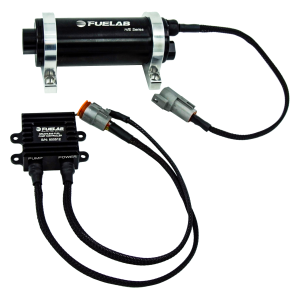

Fuelab Fuel Pump Twin Screw EFI Electric In-Line 1250hp View larger
    Fuelab Fuel Pump Twin Screw EFI Electric In-Line 1250hp

Fuelab Fuel Pump Twin Screw EFI Electric In-Line 1250hp

Buy Brand Fuelab Fuel Systems Fuelab Fuel Pump Twin Screw EFI Electric In-Line 1250hp, Model FLB47403 online. Air And Fuel,Air & Fuel

$877.00

SAVE 50%-80% OFF

$263.10

- +

Add to wishlist

Frasers Plus

$0 today, followed by 3 monthly payments of $3, interest free. Read More

Fuelab Fuel Pump Twin Screw EFI Electric In-Line 1250hp

47403 Fuelab H/E Series Brushless Twin Screw Pump

500 lph @ 45psi, 125psi Max, 13.5v - Rated up to 1250+ HP - The pinnacle of efficiency and power.

Pump Features:

  • Compatible with gasoline, diesel, methanol, and ethanol
  • Twin Screw Rotor Pumping Mechanism
  • 125PSI Max Operating Pressure
  • 1250+HP power support at continuous speed, no speed control required
  • Higher efficiency means less current draw and less noise
  • Superior Priming Capabilities
  • Greater resistance to cavitation (vapor lock)
  • Backed by a limited lifetime warranty

Motor Features:

  • Lightweight super-efficient DC brushless motor to minimize current draw
  • Powerful high flux density Neodymium rare earth magnets
  • No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
  • Wet motor design, no dynamic shaft seals that can wear out

Electronic Features:

  • 8 to 16 volt vehicle electrical system compatibility
  • No expensive voltage regulators or pump controllers required
  • Continuous duty motor speed

Construction Features:

  • Compact, lightweight design, less than 3lbs. Overall length 7.39”, diameter 3.27” including mounting base
  • Billet Aluminum Construction with anodize per MIL-A-8625, Type II
  • Integrated Controller with Sealed Electrical Connector
  • Integrated Dampened Mounting System for quick and compact installation
  • Long Life, multi-fuel compatible Fluorosilicone static seals
  • Accepts standard or port style -8AN fittings

Pulse Width Modulation Compatibility (PWM)

  • Compatible with most aftermarket ECU's with PWM output frequency
  • Compatible from 100Hz to 2500Hz
  • AEM
  • ECU Masters
  • Fueltech
  • Haltech
  • Holley
  • Link Engine Management
  • Megasquirt

Fuel Pump - Electric - Inline - Brushless - 500 lph - 8 AN Female Inlet / 8 AN Female Outlet - Gas / Diesel / E85 / Methanol - Control Module / Hardware Included - Aluminum - Black Anodized - Each - Part Number: 47403

Specifications

Brand
Fuelab
Part Number
47403
Product Line
H/E Series
Electric/Mechanical
Electric
Brushless
Yes
In-Tank/Inline
Inline
Twin Screw
Yes
Inlet Size
8 AN
Inlet Style
Female
Outlet Size
8 AN
Outlet Style
Female
Free Flow lph
500 lph
Maximum Pressure
125 PSI
Gasoline Compatible
Yes
Diesel Compatible
Yes
Methanol Compatible
Yes
E85 Compatible
Yes
Hardware Included
Yes
Control Module
Yes
Material
Aluminum
Color
Black
Finish
Anodized
Quantity
Each

Description

Product code: Fuelab Fuel Pump Twin Screw EFI Electric In-Line 1250hp
